Figure 3 of Ma, Mol Vis 2011; 17:1759-1770.

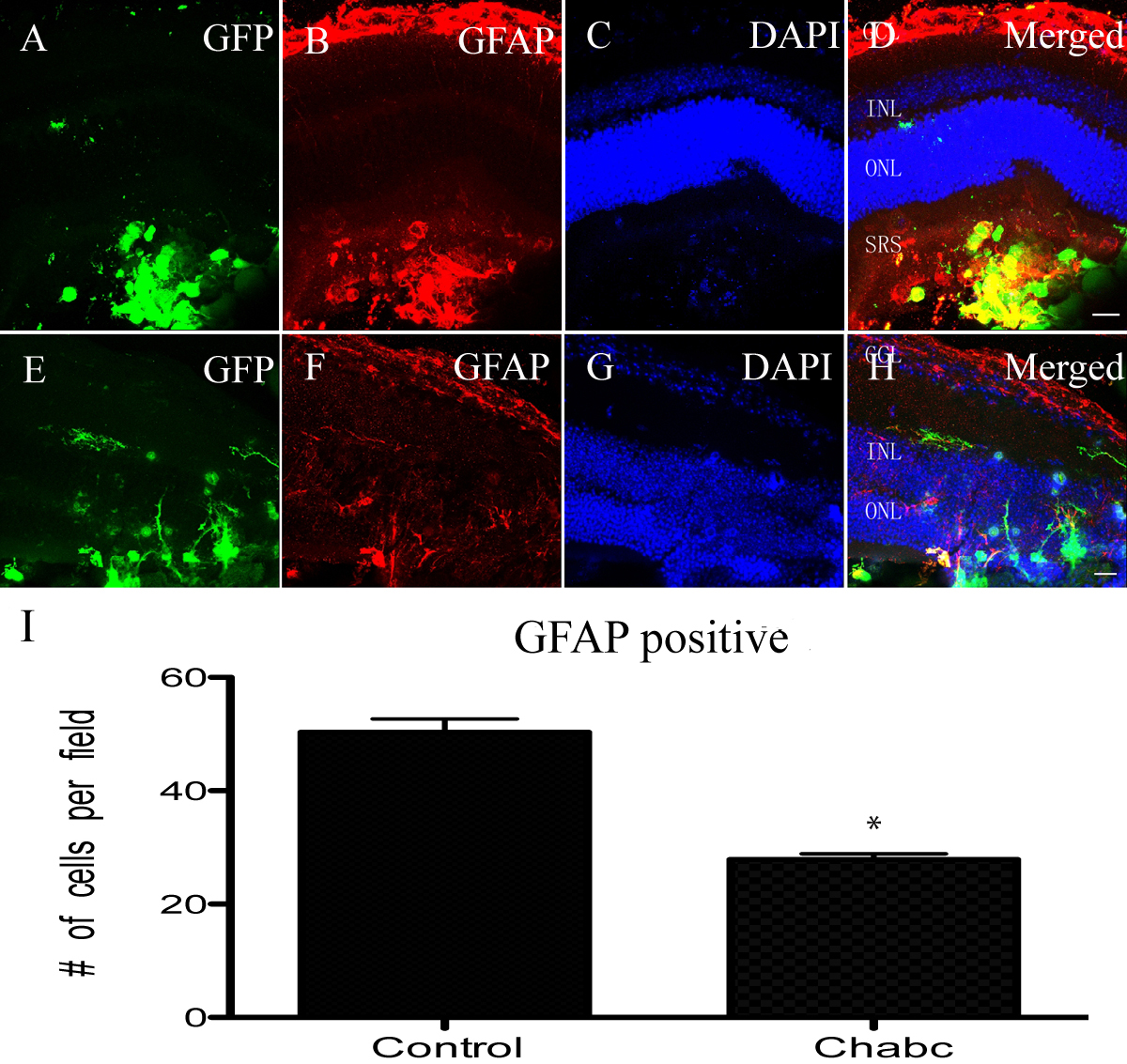

Figure 3. Glial fibrillary acidic protein (GFAP) expression of murine retinal progenior cells (mRPCs) in B6 mice. A-D: Three weeks after transplantation of mRPCs. E-H: Three weeks after transplantation of mRPCs combined with Chondroitinase ABC. I: The average number of GFAP-positive cells was counted per microscopic field. The columns are mean values, error bars are SD, *p<0.05 (n=9). The cells gathered in the subretinal space almost express GFAP. Following transplantation of mRPCs and Chondroitinase ABC, the cells migrated to the retinal layers and seldom express GFAP. Scale bar: 20 μm (D, H). Abbreviations: ganglion cell layer (GCL); inner nuclear layer (INL); outer nuclear layer (ONL); and subretinal space (SRS).
