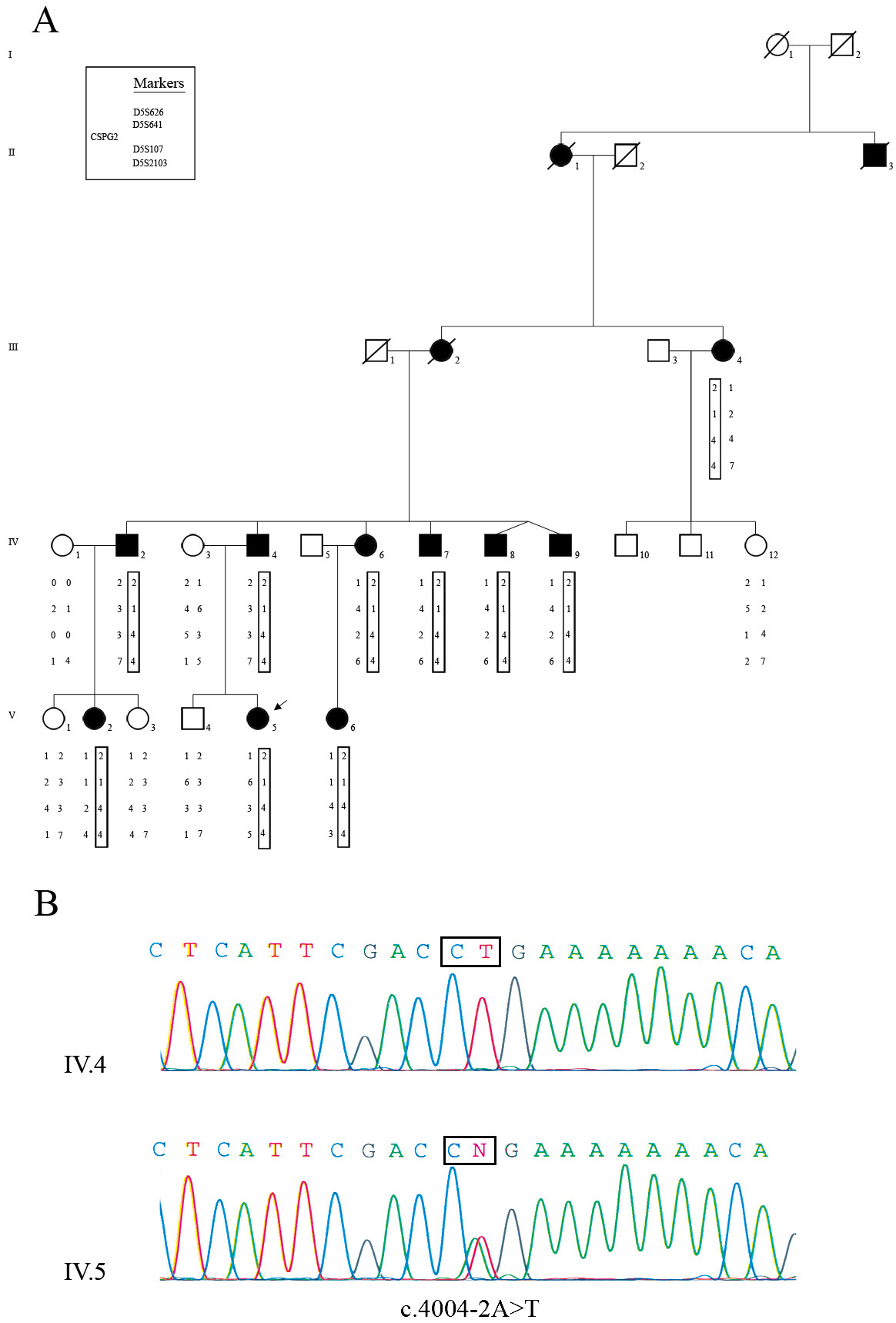

Figure 3. Pedigree of the Wagner family,
linkage and mutation analysis of the versican (VCAN) gene. A:
The pedigree of the family studied consisted in ten affected and six
unaffected participating individuals, providing strong evidence of
autosomal dominant mode of inheritance. Filled symbols represent
affected individuals, whereas clear symbols refer to unaffected
individuals. The arrow indicates the first proband examined in our
ophthalmologic center. Segregation analysis of microsatellite markers
encompassing the WGN1 locus on chromosome 5q14.3. The
disease-associated haplotype is boxed and is shared between all
affected members. The genetic markers and the corresponding allele are
listed in map order. B: Partial sequence chromatograms of
intron 7–exon 8 boundary of the VCAN gene from one affected
individual (V.5) and one normal control subject (V.4) showing a
heterozygous adenine to thymine transversion at the second base of the
3′ acceptor splice site of intron 7 (c.4004–2A>T).
