Figure 2 of
Audo, Mol Vis 2011; 17:1598-1606.

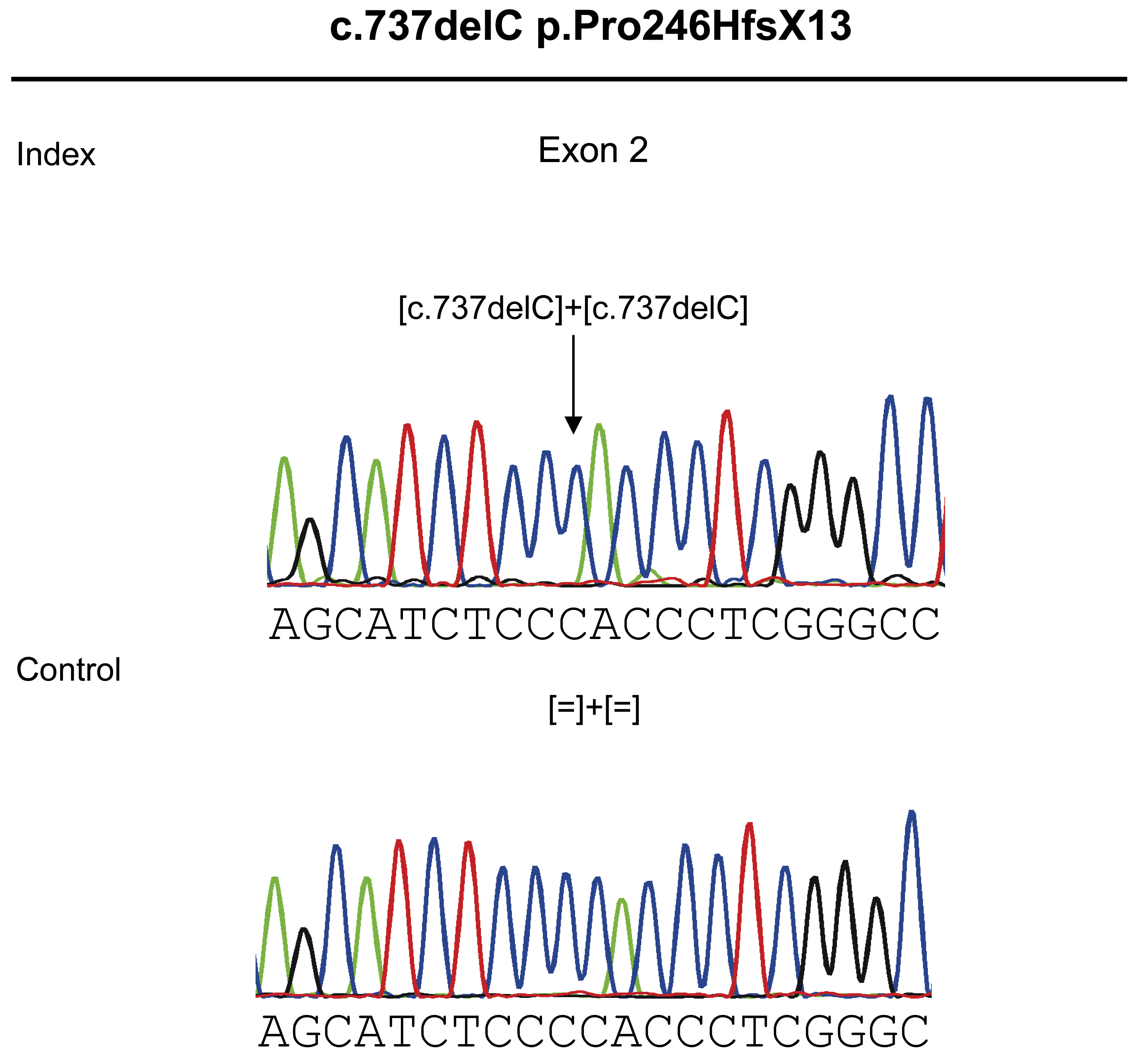

Figure 2.
Sequence chromatographs for the novel homozygous mutation c.737delC found in exon 2 of
DFNB31
of the index patient leading to a frameshift and premature stop codon p.Pro246HfsX13 and the respective control sequence below.
