Figure 2 of Luo, Mol Vis 2011; 17:1588-1597.

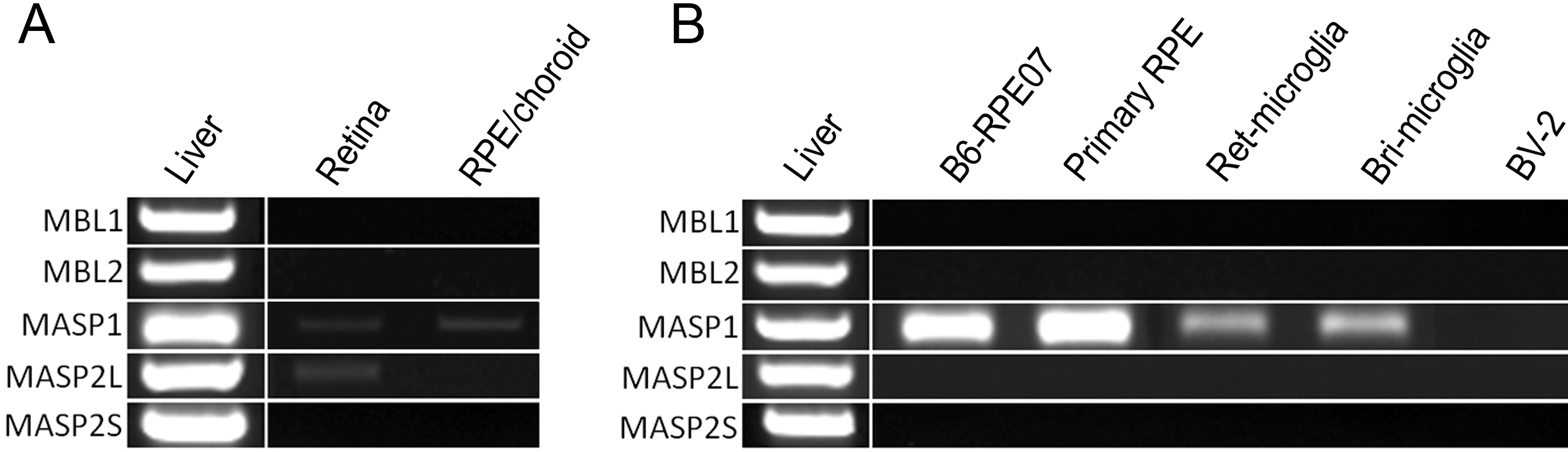

Figure 2. The expression of selected mannose binding lectin (MBL) pathway-related complement genes. The expression of MBL1, MBL2, MASP1, MSAP2L, and MASP2S in retina and RPE/choroid (A) and primary cultured retinal pigment epithelium (RPE) cells, B6-RPE07 cell line, primary cultured retinal microglia (Ret_microglia), brain microglia (Bri_microglia), and BV-2 cells (B) were analyzed by reverse transcriptase-PCR. Total RNA from mouse liver tissue was used as a positive control.
