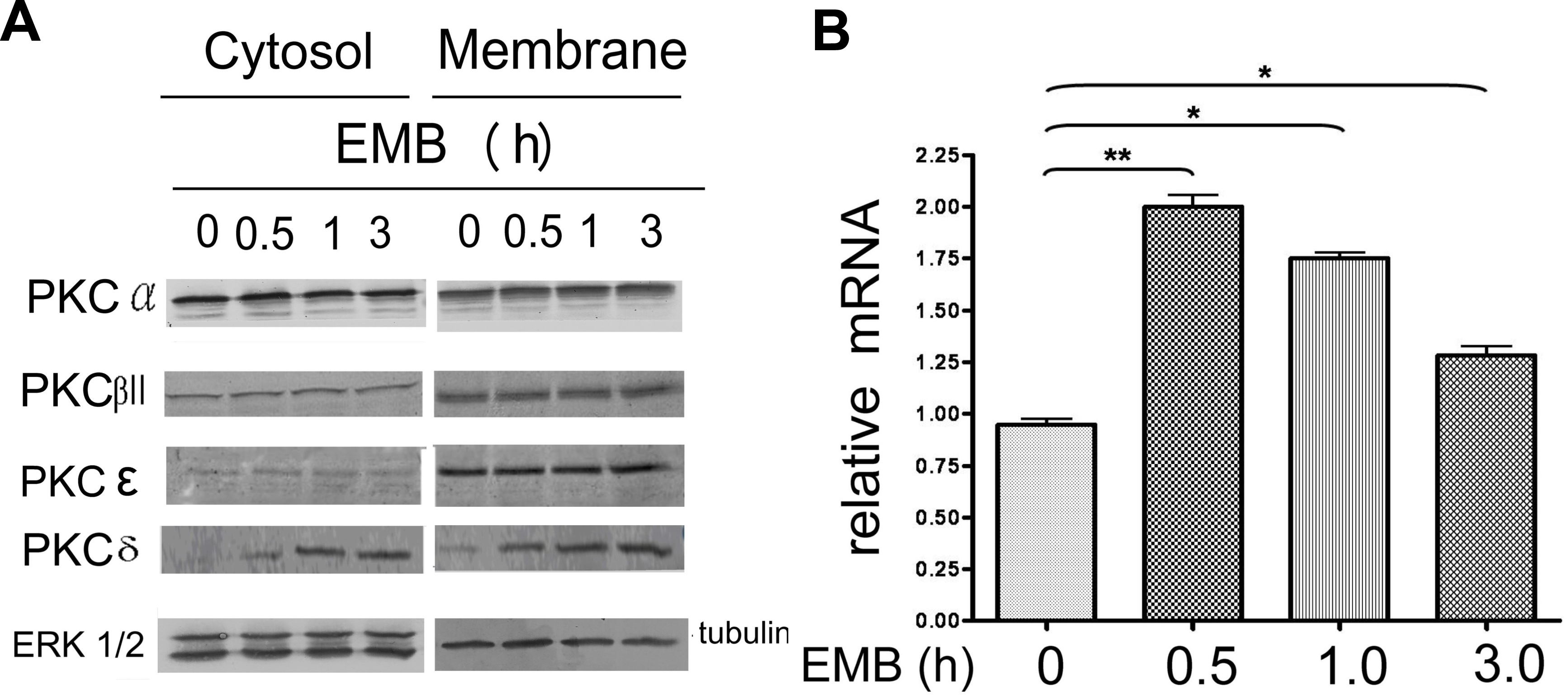

Figure 3. Ethambutol (EMB) did not induce
membrane translocation of various protein kinase C (PKC) isozymes but
did induce gene expression of PKCδ in retinal pigment epithelium (RPE).
RPE50 cells were treated with 8.0 mM EMB for 0, 0.5, 1 and 3 h. Western
blots of cytosolic and membrane PKCα, βII, and δ (A), and real
time RT/PCR (B) of PKCδ were performed. In (A), ERK and
tubulin were included as internal controls for cytosolic and membrane
proteins, respectively. The results are representative of four repeated
experiments. In (B), relative amounts of PKCδ mRNA for each
sample were calculated, taking the sample of time zero as 1.0. The
asterisks (* and **) indicate statistical significance (p<0.05 and
p<0.005, respectively, n=3) between the indicated groups.
