Figure 5 of Kumar, Mol Vis 2011; 17:1414-1419.

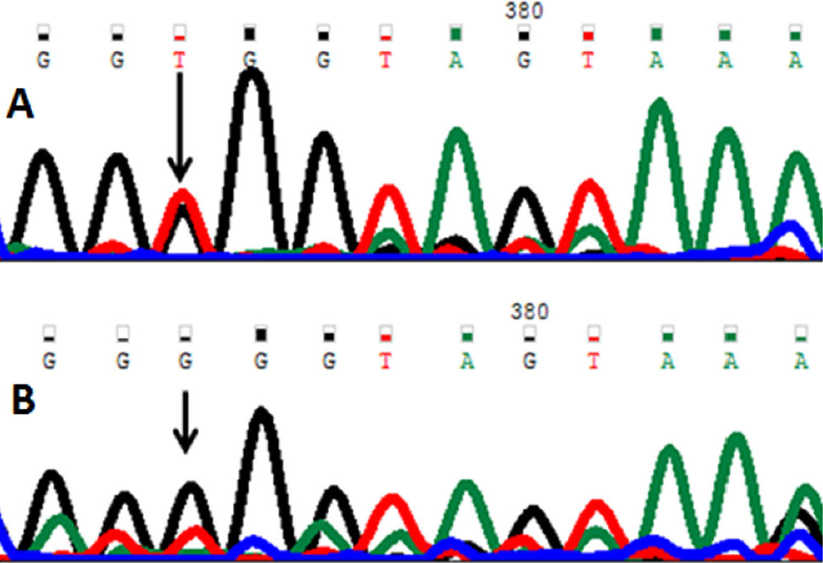

Figure 5. DNA sequence of PAX6 equivalent to codon 71–75. A: The reference sequence derived from the control shows the heterozygous c.216T>G change which predicts a codon change from GGT>GGG and p.G72G mutation. B: The sequence derived from another patient shows a homozygous p.G72G mutation.
