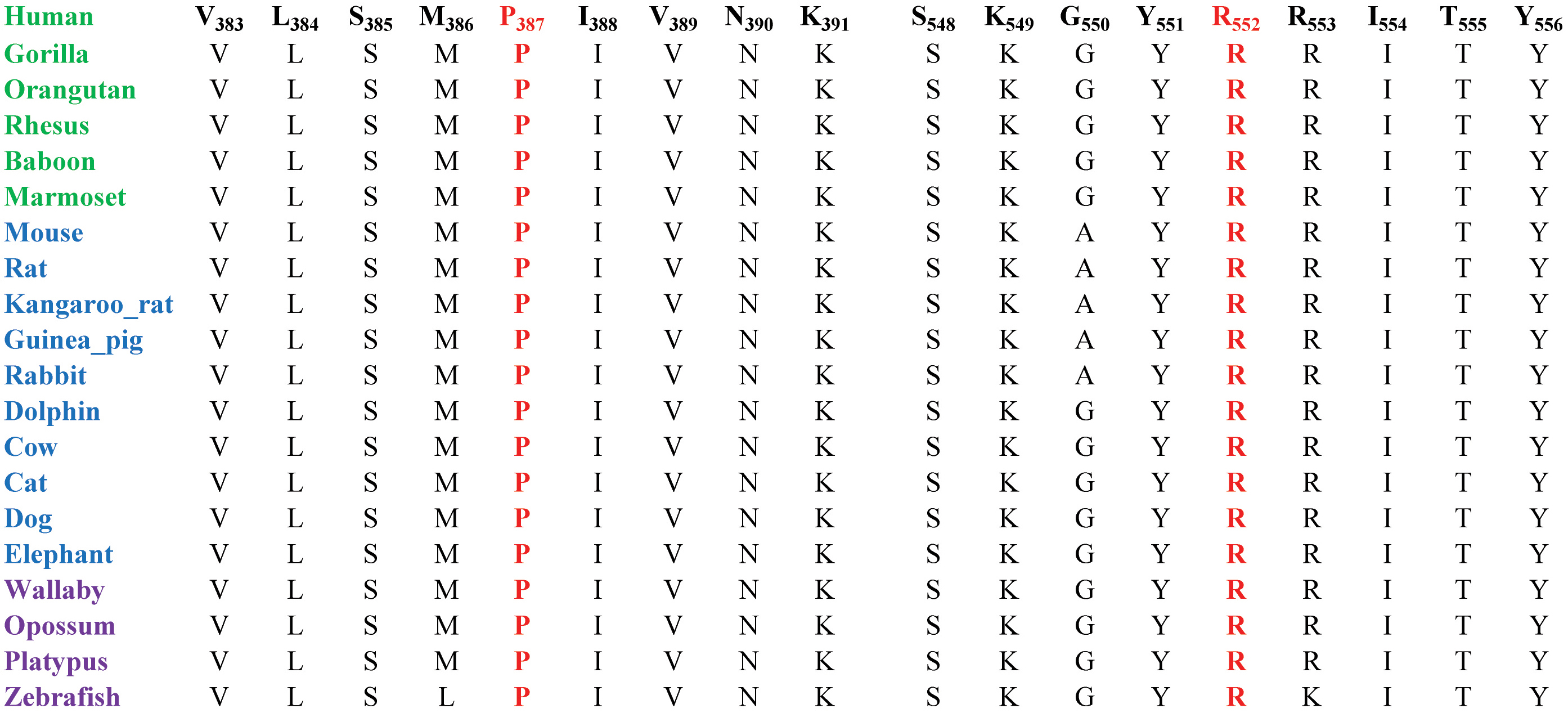

Figure 5. Amino Acid conservation of the
P387 and R552 residues in other PDE6β orthologs. The arrows point to
the amino acid residues P387 and R552, which are mutated in the
affected individuals of families PKRP183 and PKRP161, respectively.
Primates are colored green, placental mammals are blue, and vertebrates
are purple.
