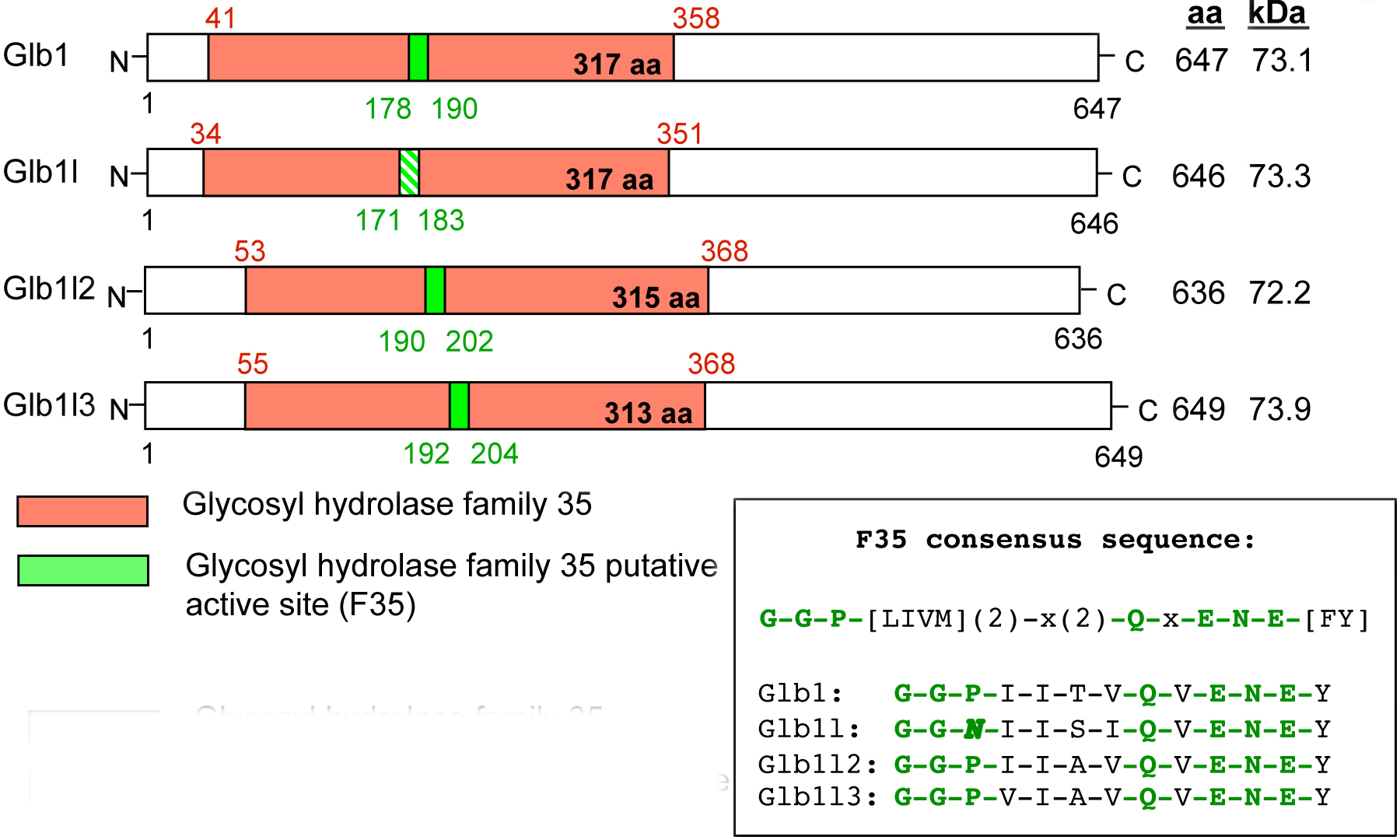

Figure 3. Conserved protein domains in
mouse Glb-related proteins. All Glb-related proteins are characterized
by the glycosyl hydrolase family 35 domain (red box) and its putative
F35 active site (green box). The F35 consensus sequence of Glb1l
(hatched green box) differs by one amino acid (N instead of P) from the
canonical motif.
