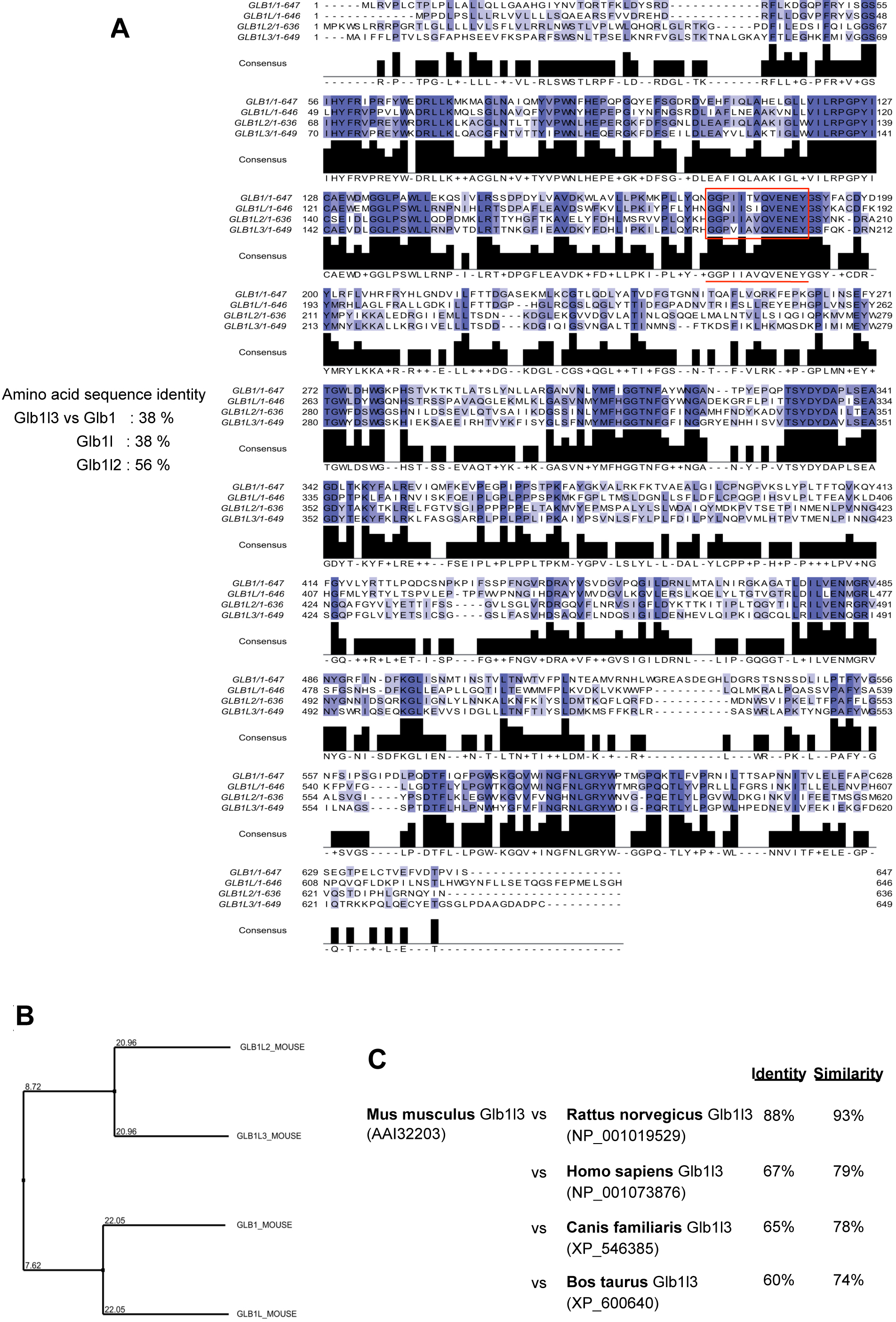

Figure 2. Amino acid conservation between
mouse Glb-related proteins. A: Multiple alignment of protein
sequences derived from the UniProt database showed the degree of
conservation between mouse β-galactosidase (Glb)-related members. B:
Phylogenic
tree
displayed
the degree of evolutionary conservation
between the Glb-related proteins. C: Pairwise alignment of the
mouse sequence against the mammalian homologs retrieved from the NCBI
Homologene database.
