Figure 2 of Van Kirk, Mol Vis 2011; 17:1261-1274.

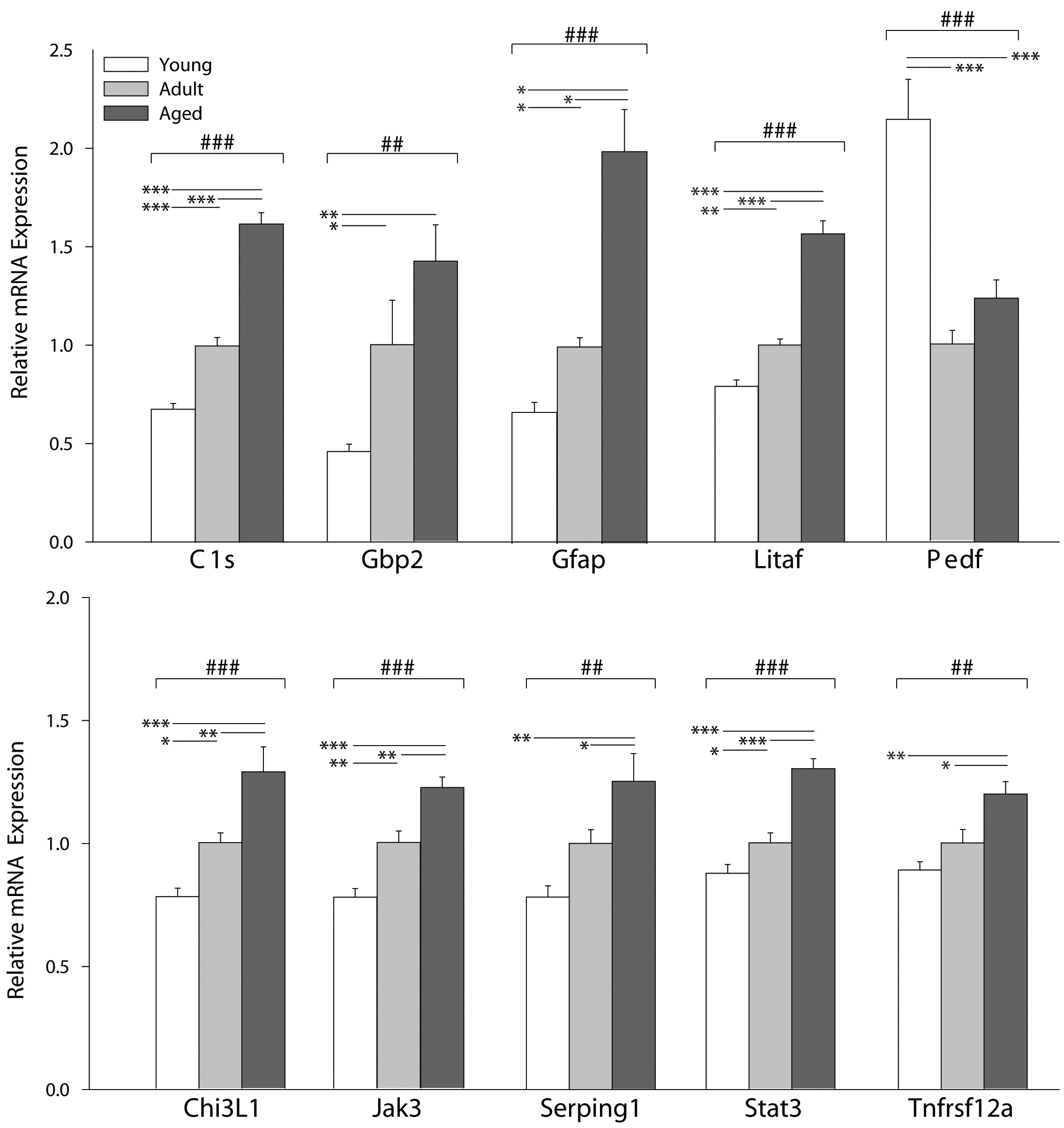

Figure 2. Inflammation transcripts are regulated with aging. Ten of the 23 inflammation-related transcripts that we have previously observed to be upregulated in the retina of a rat model of Type I diabetes were significantly altered with age. With the exception of pigment epithelium-derived growth factor (Pedf), all of the transcripts were upregulated in Old animals. One-way ANOVA (ANOVA) with Benjamini-Hochberg multiple testing correction, ##p<0.01, ###p<0.001; SNK post-hoc test, *p<0.05, **p<0.01, ***p<0.001, n=5/group. Error bars represent standard error of the mean.
