Figure 4 of
Yang, Mol Vis 2011; 17:1070-1073.

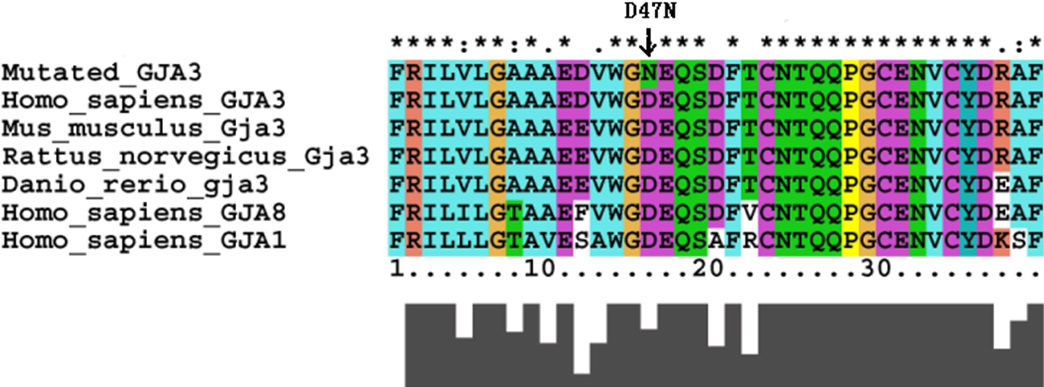

Figure 4.
A multiple sequence alignment of amino acid sequence of GJA3 (connexin46) in different species and in different human α-connexins. The Asp47 residue is highly conserved during evolution.
