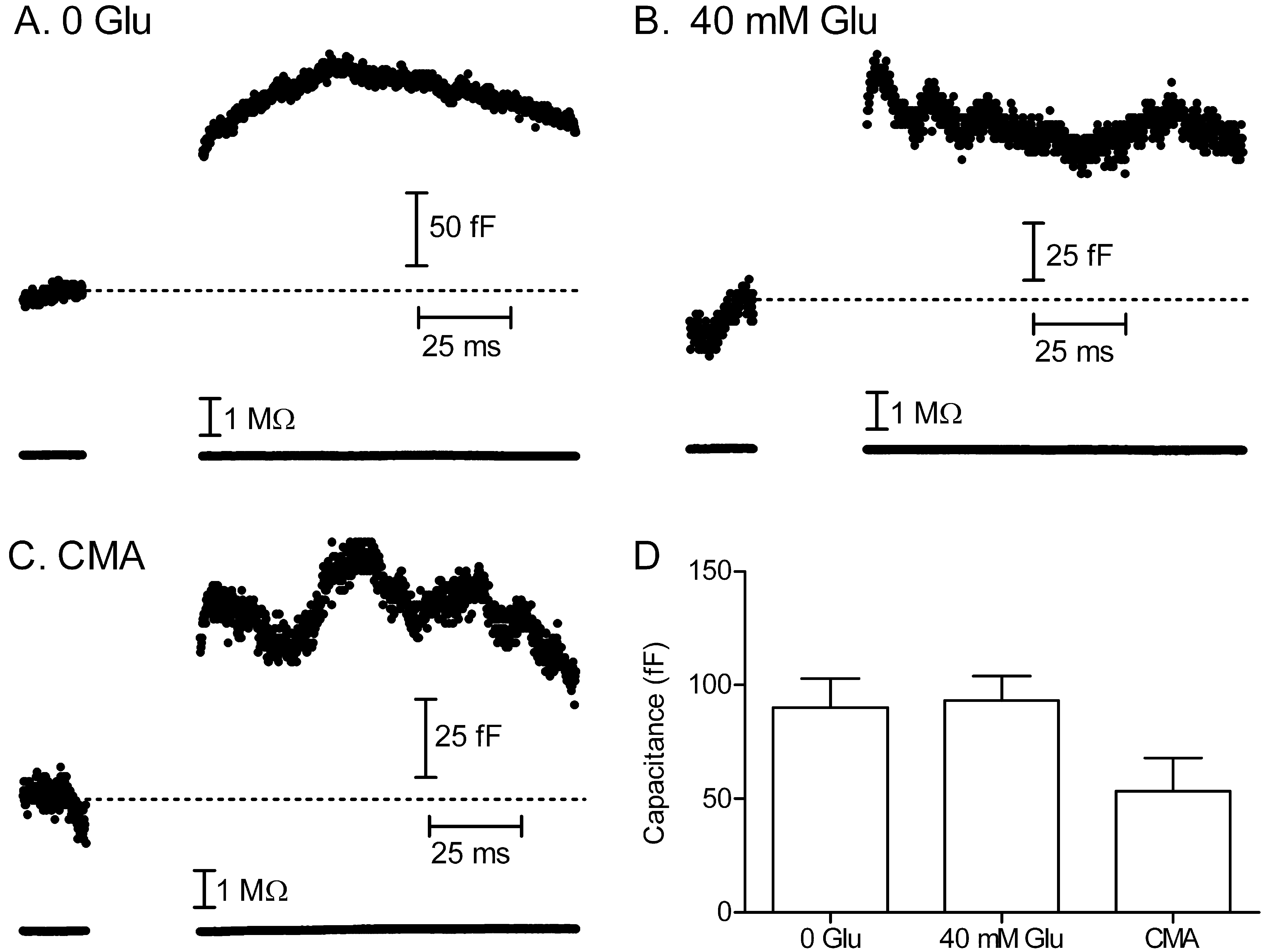

Figure 4. Vesicle fusion was not
significantly altered by changes in vesicular glutamate loading. A:
Exocytotic
increase in membrane capacitance (Cm) evoked by
stimulation of a cone lacking supplementary glutamate in the cytosol.
Access resistance was not significantly altered (bottom trace). B:
Exocytotic
capacitance increase evoked by stimulation of a cone with 40
mM glutamate added to the pipette solution. C: Exocytotic
capacitance increase evoked by stimulation of a cone lacking cytosolic
glutamate and following pretreatment with the vesicular ATPase
inhibitor concanamycin A (CMA, 3.5 μM) for 1 h. D: Exocytotic
increases in membrane capacitance evoked by depolarizing stimulation of
cones (25 ms, −70 to −10 mV) without supplemental glutamate (n=7), with
40 mM glutamate added to the patch pipette (n=6), and after >1 h
incubation in concanamycin A with no glutamate in the patch pipette
(n=6). Error bars show SEM.
