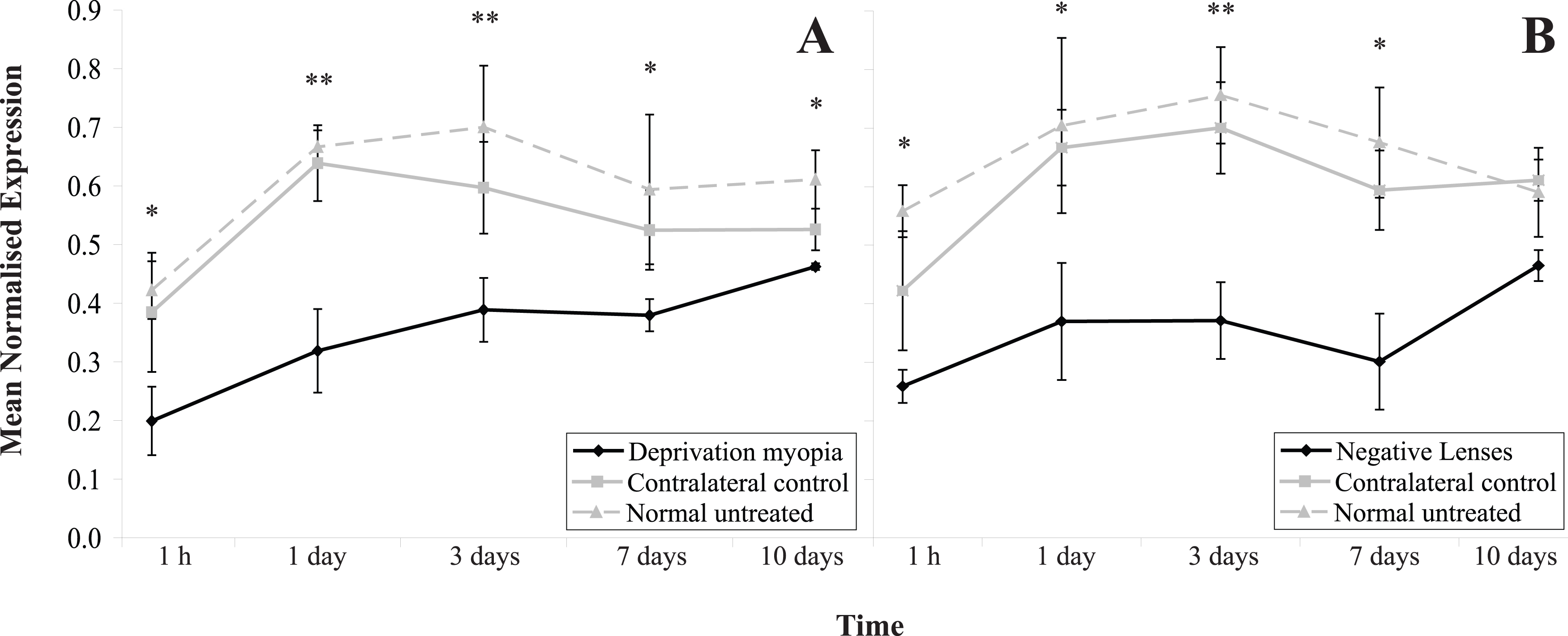

Figure 2. Changes in ZENK RNA
transcript levels in treated and contralateral control retinas
following increased ocular growth induced by the fitting of translucent
diffusers or negative lenses. Mean normalized expression of ZENK
RNA transcript levels from diffuser-treated (A) or
negative-lens-treated (B) eyes following 1 h, 1, 3, 7, and 10
days of treatment. Fitting of translucent diffusers or negative lenses
significantly affected ZENK RNA transcript levels in the
experimental eye over time, as compared to both contralateral control
values (MANOVA; F (2,86)=33.9, p<0.01 and F (2,86)=32.9, p<0.001,
respectively) and age-matched untreated control values (MANOVA; F
(2,86)=37.9, p<0.001 and F (2,86)=18.5, p<0.01, respectively). ZENK
transcript levels in the contralateral control eyes from either
form-deprived or negative-lens-treated animals were unaffected by
treatment as compared to age-matched untreated values (MANOVA; F
(2,86)=2.65, p=0.14 and F (2,86)=0.69, p=0.43, respectively). The mean
normalized expression is calculated from the efficiency (E) of
the target genes to the power of its average CT value (ECT,
target),
divided
by
the efficiency (E) of the reference gene
(β-actin) to the power of its average CT value (ECT,
reference). Error bars represent SEM, n=9. (* p<0.05, ** p<0.01).
