Figure 3 of Mackay, Mol Vis 2010; 16:369-377.

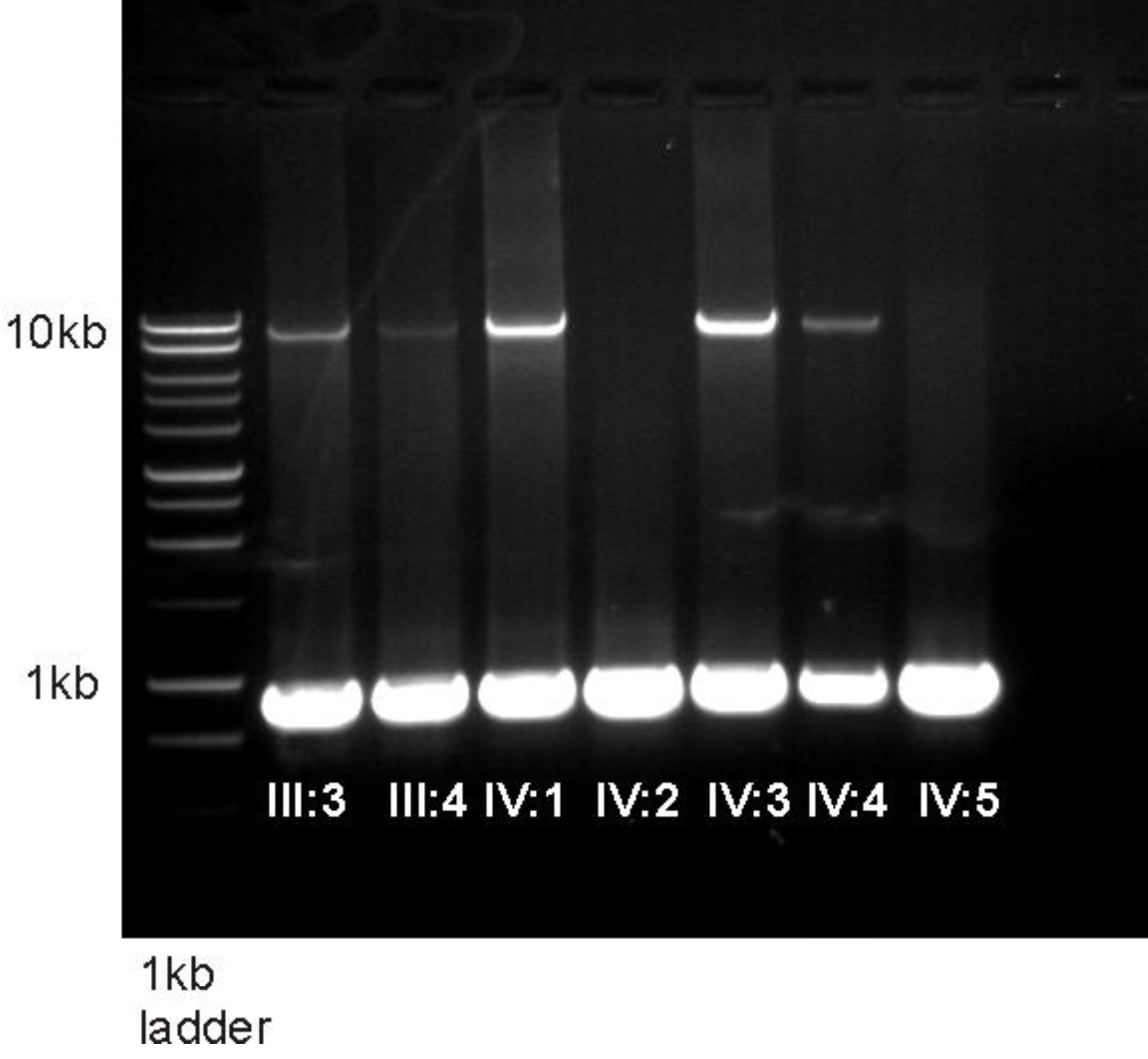

Figure 3. Gel electrophoresis results for long range PCR in family A. Long range PCR (using primers 7F2 and 8R5) showing the normal product of 9.65 kb and the deleted product of 917 bp in Family A. The two affected products (IV:2, IV:5) are missing the upper 9.65-kb band.

Mackay, Mol Vis 2010; 16:369-377. http://www.molvis.org/molvis/v16/a43
