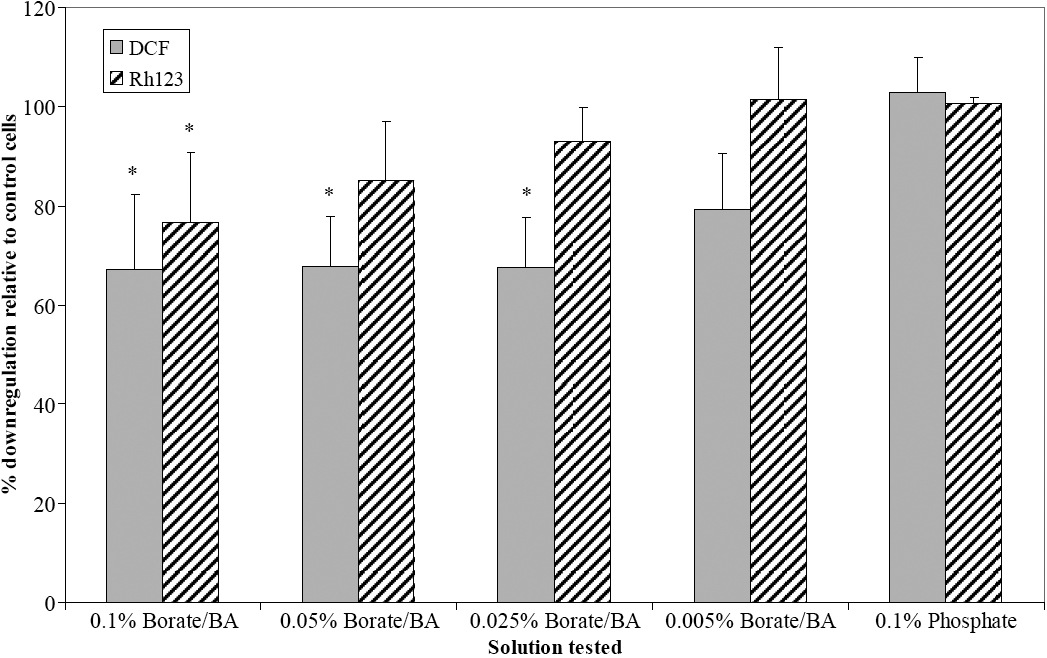

Figure 5 of Gorbet, Mol Vis 2010; 16:272-282.


Figure 5. Effect of borate/boric acid on reactive oxygen species production and mitochondrial permeability. Cells were incubated for 24 h with different concentration of Unisol, a saline solution containing borate/boric acid. Reactive oxygen species (ROS) was measured with dichlorohydrofluorescein diacetate and mitochondrial permeability was assessed with Rh123. Results are expressed as a percentage relative to cells grown in the absence of a solution (control); n=3–4. The asterisk indicates significant difference from control, p<0.01.
