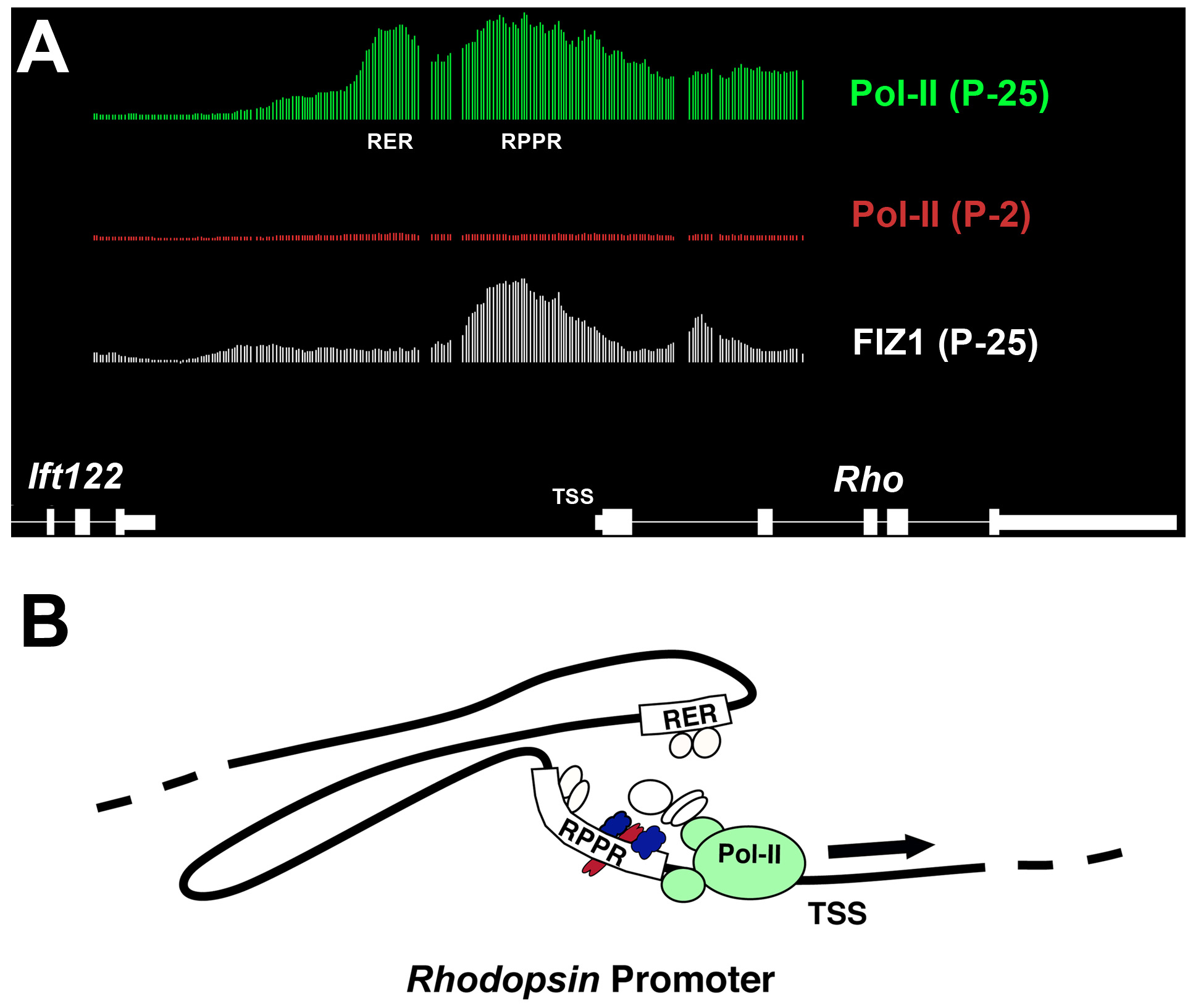

Figure 6. RNA-polymerase-II (Poll-II)
associations at the activated rhodopsin gene (Rho). A:
Pol-II ChIP-on-chip data viewed with the IGB program around the Rho
transcription start site (TSS), including the rhodopsin proximal
promoter region (RPPR) and the upstream rhodopsin enhancer region
(RER). The Rho gene was not preloaded with inactive Pol-II in
P2 neural retina before expression in maturing photoreceptors. Two
regions of maximum Pol-II signal corresponded to the RPPR and RER
regions of the promoter. The FIZ1 ChIP signal maximum also corresponded
to the RPPR. B: While the RPPR is sufficient for gene
activation, the RER is required for maximum activity. Transcription
factors shown to enhance Rho expression can bind to sequences
in the RER, about 2,500 bp upstream of the RPPR. The Pol-II
ChIP-on-chip pattern is consistent with a DNA loop model where distal
enhancer regions (the RER) become integrated with the gene’s RPPR in
the full enhanceosome complex.
