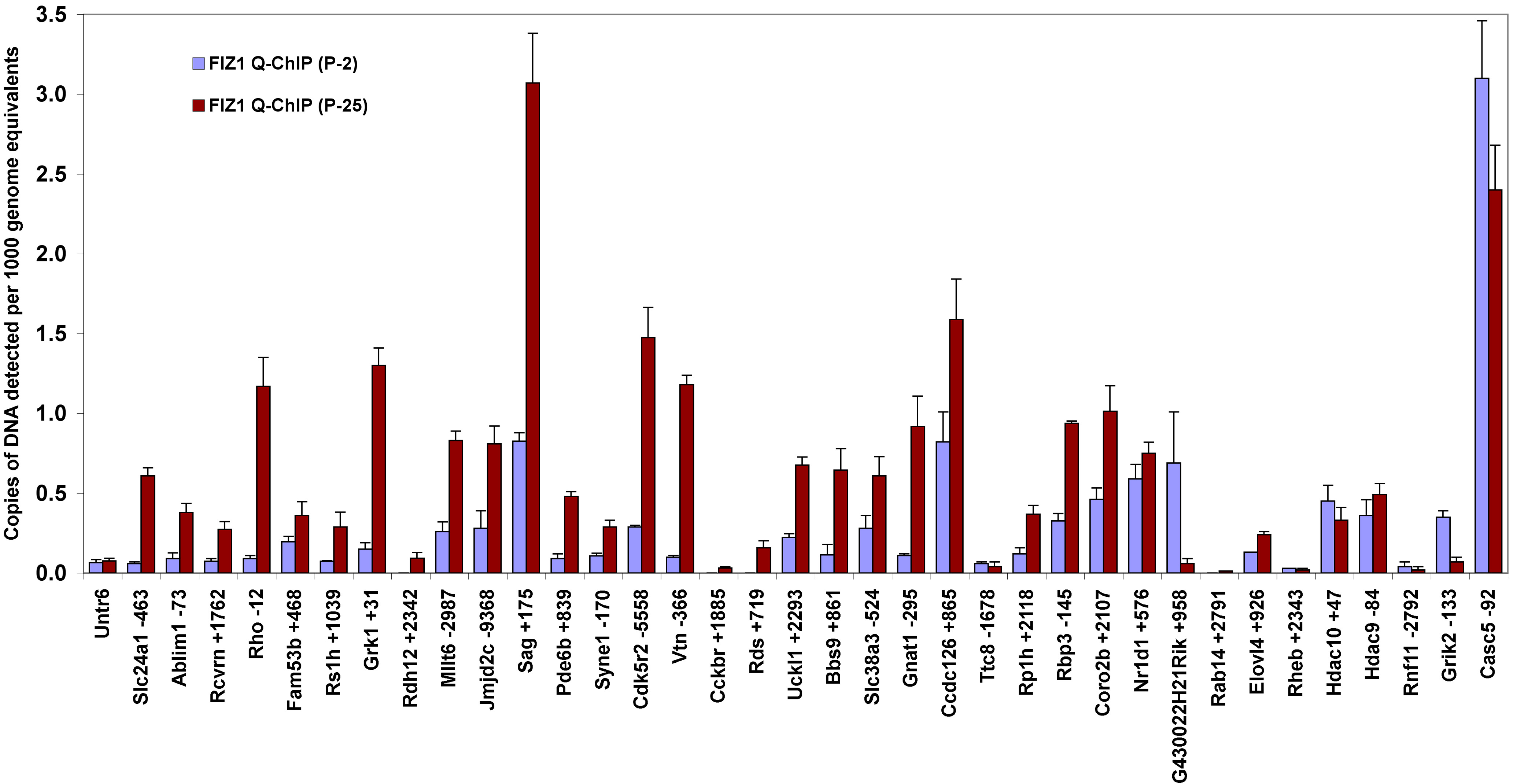

Figure 5. Comparison of FLT-3 interacting
zinc finger 1 (FIZ1) recruitment to gene promoter complexes during
terminal maturation of photoreceptors. ChIP was performed using an
antibody specific for the FIZ1 protein. Protein binding is proportional
to the amount of target DNA captured by ChIP and is shown as copies of
target DNA detected per 1,000 genome equivalents of input DNA. Results
were normalized for chromatin input and PCR efficiency. Error bars
indicate standard deviation (n=3). An untranslated region (Untr6)
on
chromosome 6 provided a negative-binding control. The 5′ end
location of each PCR target is indicated with each gene name. For
Example, Slc24a1-463 indicates that the qPCR target was 463
bases upstream of the Slc24a1 TSS. Rho, Rcvn, Pde6b,
and
Sag1 are key markers of photoreceptor-specific gene
expression. Grik2 and Casc5 were included as genes with
ChIP-on-chip Pol-II peak signal ratios <1.0. Genes: Solute carrier
family 24, Na/K/Ca exchanger, member 1 (Slc24a1), Actin binding
LIM protein1 (Ablim1), Recoverin (Rcvrn), Rhodopsin (Rho),
Family
with sequence similarity 53, member B (A930008G19Rik, Fam53b),
Retinoschisis 1 homolog (Rs1h), G protein-coupled receptor
kinase 1 (Grk1), D4, zinc and double PHD fingers, family 3 (Dpf3),
Retinol
dehydrogenase-12 (Rdh12), Myeloid/lymphoid or
mixed-lineage leukemia 6 (Mllt6), jumonji domain containing 2C (Jmjd2c),
S-antigen
(Sag), Phosphodiesterase 6b (Pde6b), Spectrin
repeat containing, nuclear envelope 1 (Syne1), Cyclin-dependent
kinase 5, regulatory subunit 2 (Cdk5r2), Vitronectin (Vtn),
Cholecystokinin-2
receptor (Cckbr), Peripherin 2 (Rds),
Uridine-cytidine kinase 1-like 1 (Uckl1), Bardet-Biedl syndrome
9 (E130103I17Rik, Bbs9), Solute carrier family 38, Na/H -coupled
glutamine transporter, member 3 (Slc38a3), Transducin alpha (Gnat1),
Coiled
coil domain containing 126 (6330407D12Rik, Ccdc126),
Tetratricopeptide repeat domain 8 (Ttc8), Retinitis pigmentosa 1
(Rp1h), Retinol binding protein 3, interstitial (Rbp3),
Coronin, actin binding protein, 2B (Coro2b), Nuclear receptor
subfamily 1, group D, member 1 (Nr1d1), G430022H21Rik, RAB14,
member RAS oncogene family (Rab14), Elongation of very long
chain fatty acids-like 4 (Elovl4), Ras homolog enriched in brain
(Rheb), Histone deacetylase 10 (Hdac10), Histone
deacetylase 9 (Hdac9), Ring finger protein 11 (Rnf11),
Glutamate receptor, ionotropic, kainate 2 (beta 2) (Grik2),
Cancer susceptibility candidate 5 (Casc5).
