Figure 5 of Dvoriantchikova, Mol Vis 2010; 16:2882-2890.

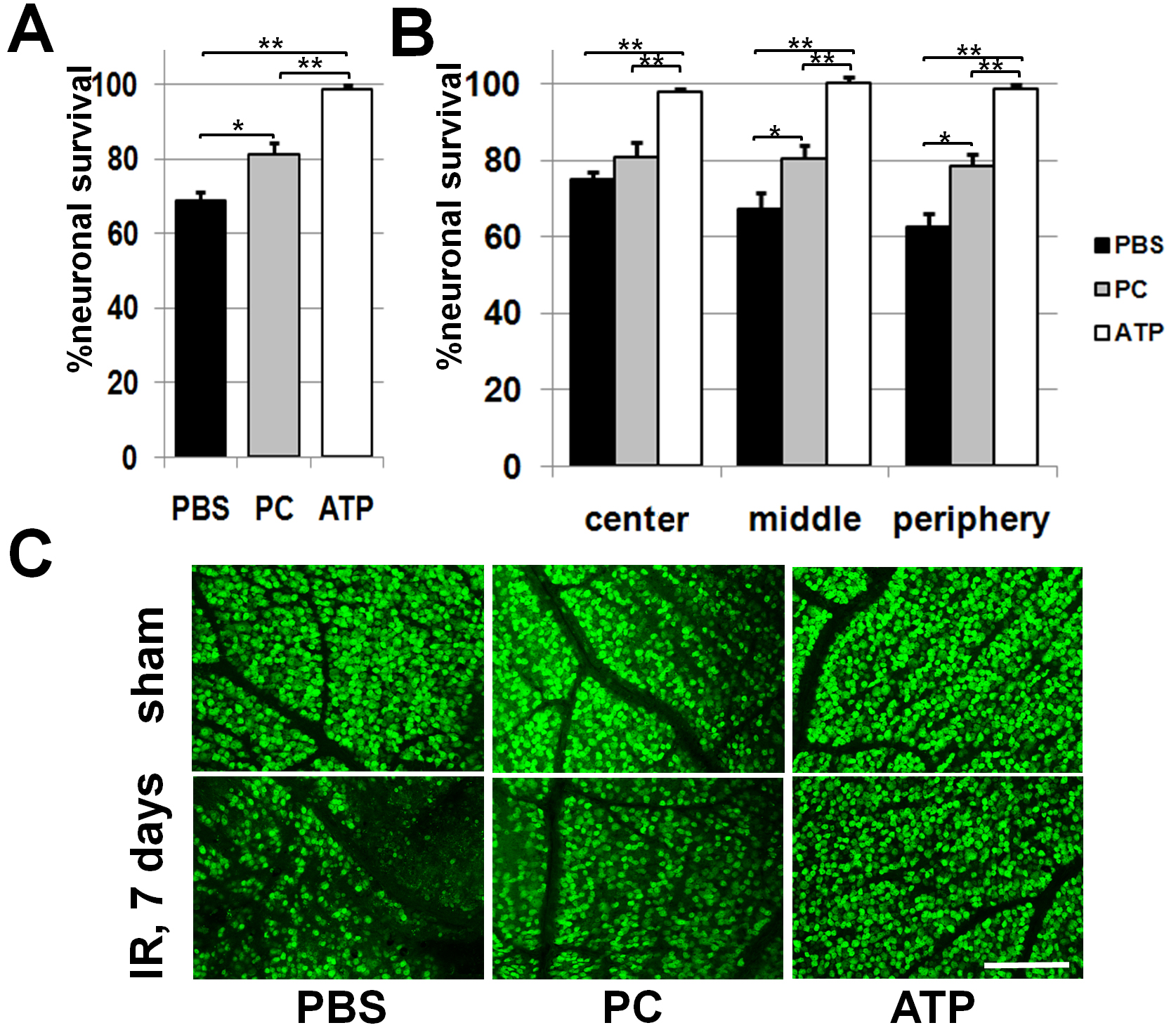

Figure 5. Treatment by ATP-liposomes results in neuroprotective effects in the ganglion cell layer of retinas after ischemia reperfusion. A: The percentage survival of ganglion cell layer (GCL) neurons in the ischemic retinas of ATP (ATP)-, phosphatidylcholine (PC)-liposome-, and PBS-treated animals were detected 7 days after reperfusion (*p<0.05, **p<0.01, n=6). B: The percentage of Neuronal Nuclei (NeuN)-labeled neurons in regions of central, middle, and peripheral retina were compared between sham-operated (sham) and ischemic eyes of ATP-, PC liposome-, and PBS-treated animals 7 days after reperfusion (*p<0.05, **p<0.01, n=6). C: Representative confocal images of NeuN-labeled GCLs (green) in flatmounted controls (sham) and ischemic retinas were taken 7 days after reperfusion. Scale bar indicates 100 μm.
