Figure 2 of Yu, Mol Vis 2010; 16:2384-2394.

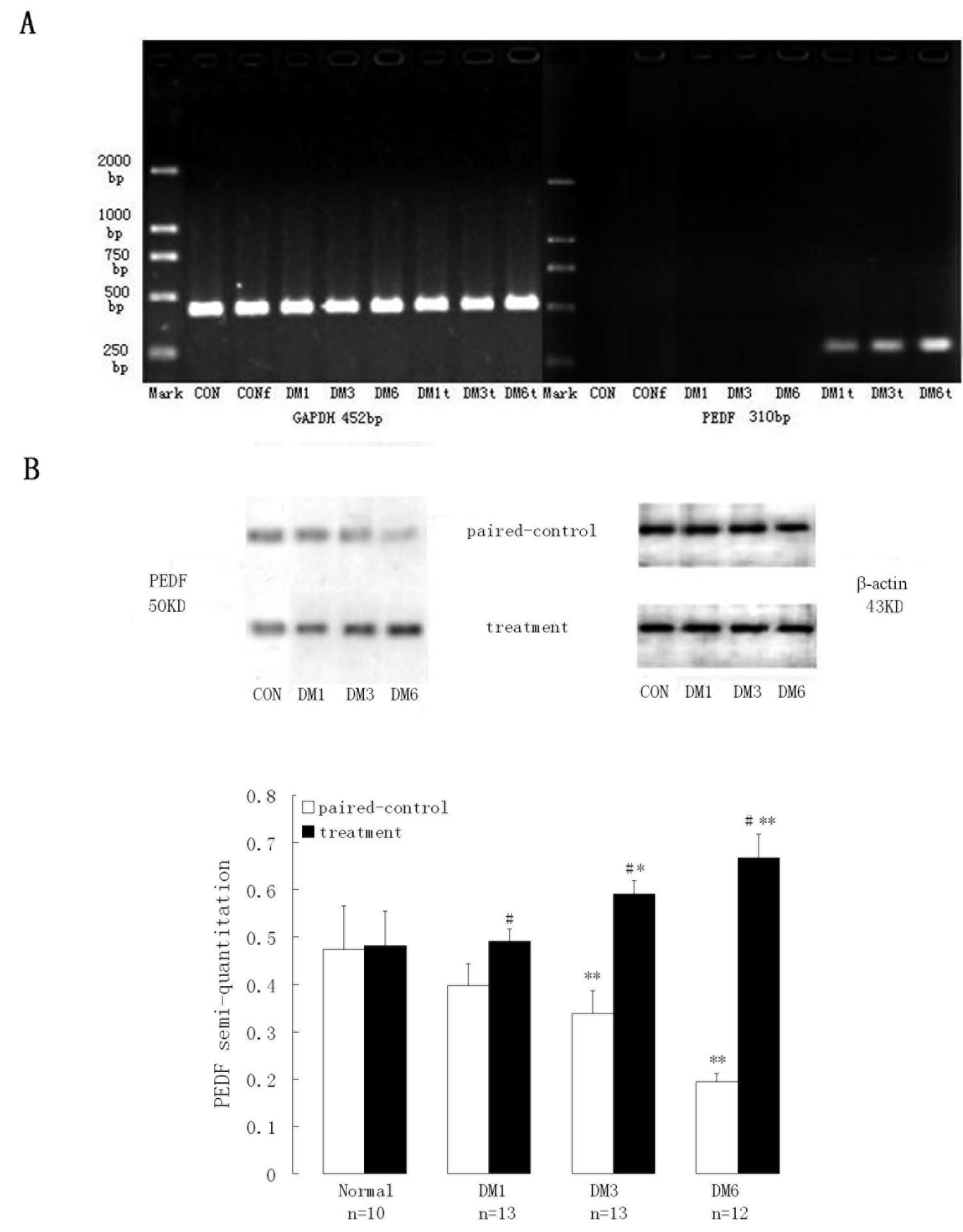

Figure 2. Expression of pigment epithelium-derived factor in retinae after intravitreal injection. A: The expression of human pigment epithelium-derived factor (hPEDF) mRNA in injected retinae was enhanced and increased over time. No expression were detected in the uninjected control rats. B: The protein expression of PEDF decreased in the paired control retinae but significantly increased in treated eyes (p<0.01) compared to paired controls or normal control eyes (p<0.01). Values of treatment were compared to that of normal control *p value <0.05, ** p value<0.01. Values of treatment were compared to that of paired control, # p value <0.01. Abbreviations: DM1 represents diabetes 1 month, DM3 represents diabetes 3 months, DM6 represents diabetes 6 months, CON represents normal control group, CONf represents sham-injected normal control group, t represents treatment.
