Figure 3 of Mott, Mol Vis 2010; 16:2153-2162.

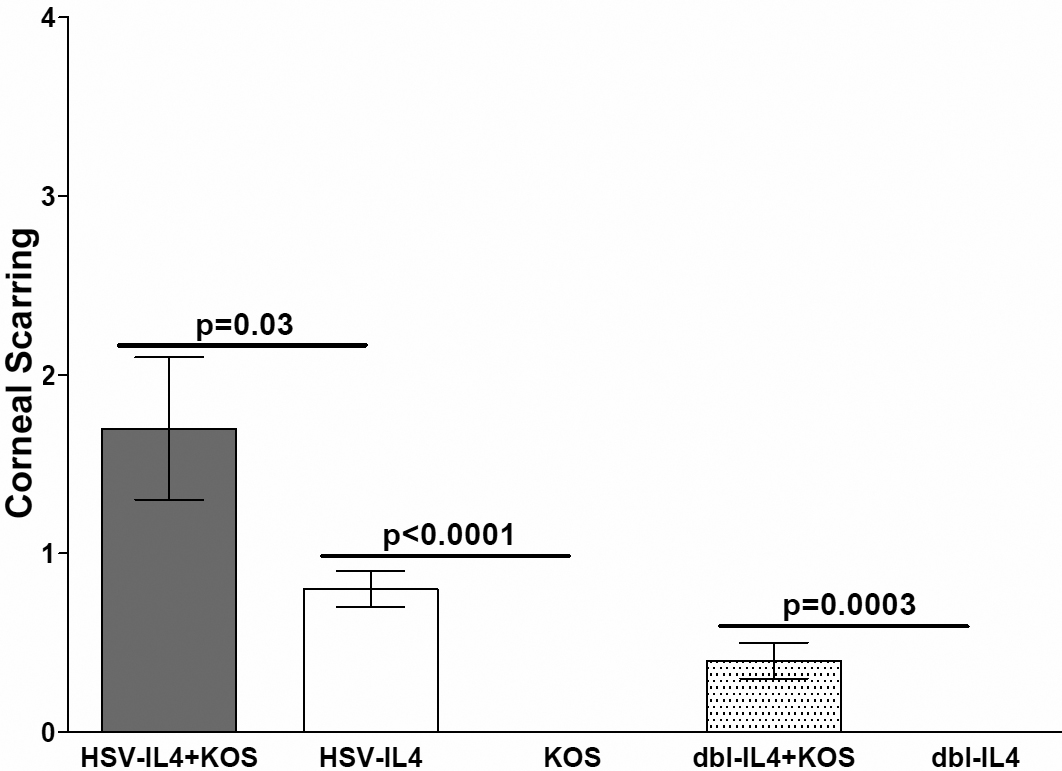

Figure 3. Corneal scarring in co-infected mice. Corneal scarring in surviving mice described in Table 1 was examined on day 30 PI as described in the Methods. CS score represents the averageĀ±SEM from 80, 40, 40, 56, and 40 eyes infected with HSV-IL-4+KOS, HSV-IL-4, KOS, dbl-IL-4+KOS, and dbl-IL-4, respectively.
