Figure 5 of Tanwar, Mol Vis 2010; 16:1996-2006.

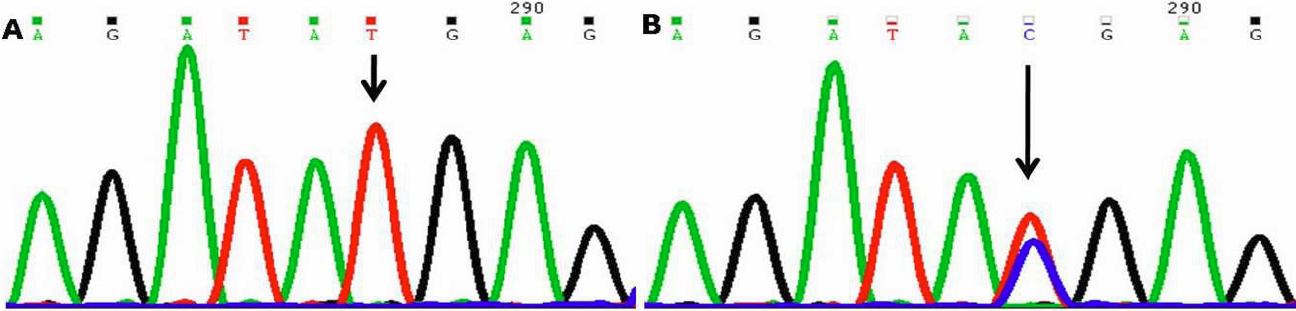

Figure 5. DNA sequence chromatogram of MYOC exon 3 equivalent to codon 346–348. A: The reference sequence derived from control is shown. B: Sequence derived from congenital glaucoma patient PCG029 shows heterozygous c.1041T>C, which predicts a codon change TAT>TAC and p.Y347Y change.

Tanwar, Mol Vis 2010; 16:1996-2006. http://www.molvis.org/molvis/v16/a215

©2010 Molecular Vision http://www.molvis.org/molvis/

ISSN 1090-0535
