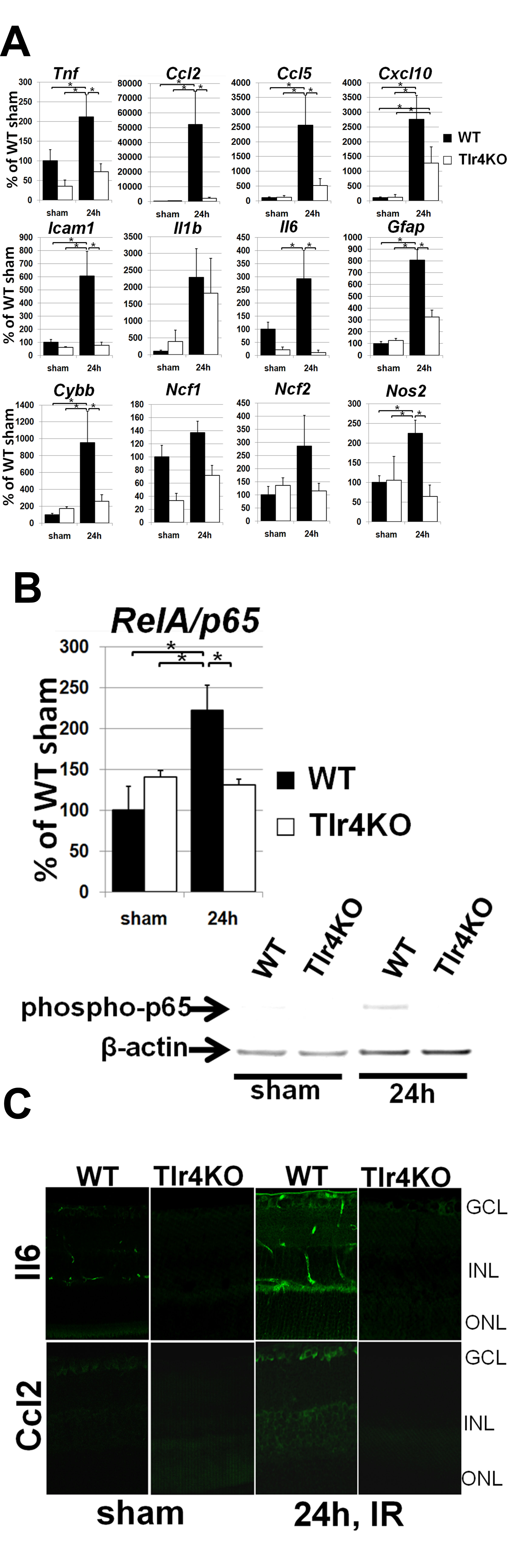

Figure 2. Toll-like receptor 4 deficiency
suppresses induction of proinflammatory markers after
ischemia/reperfusion. A: Differential expression of
proinflammatory molecules in the retinas of wild type (WT) and
toll-like receptor (Tlr4) knockout (KO) animals 24 h after
ischemia/reperfusion (IR). Gene expression was assessed using real time
PCR in sham-operated controls and experimental retinas following IR.
For each gene, results are expressed as a percentage of corresponding
value in the sham-operated eye±SEM after normalization to β-actin.
(*p<0.05, n=6). B: The levels of p65 (RelA) in
Tlr4-deficient mice after retinal IR injury were studied using real
time PCR and western blot analysis. C: Immunohistochemistry for
interleukin 6 (Il6) and chemokine (C-C motif) ligand 2
(Ccl2) protein accumulation in post-ischemic retinas of WT and Tlr4 KO
mice are consistent with increased levels of the transcripts at the
level of corresponding proteins. Scale bar equal to 100 μm.
