Figure 2 of Sapitro, Mol Vis 2010; 16:1880-1892.

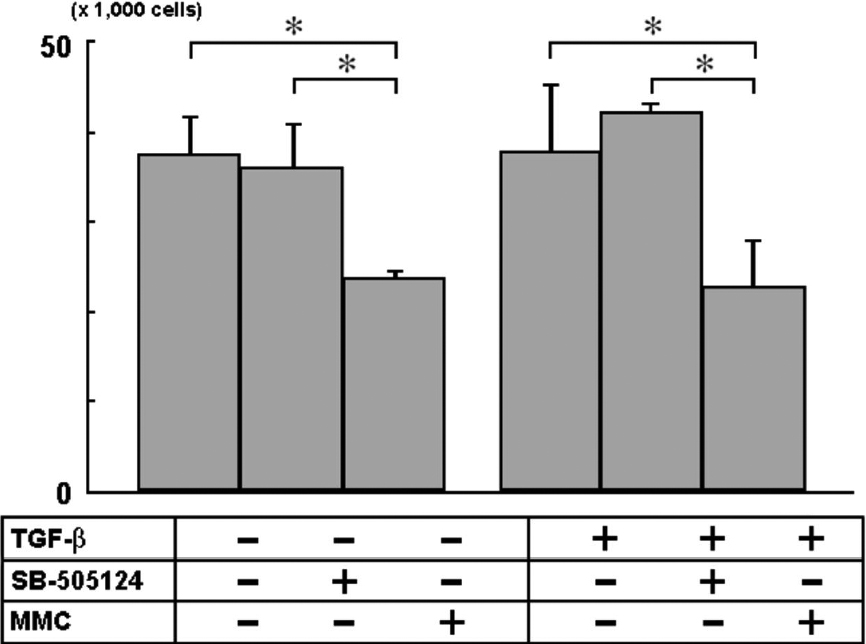

Figure 2. Effects of SB-505124 on cell density. Rabbit subconjunctival fibroblasts were incubated with 10 µM of SB-505124 or 0.04% MMC and then with or without TGF-β2 (2 ng/ml) in 12-well plates for 48 h (n=3).The number of cells was counted using a hemocytometer after trypsinization. A reduction in cell number or cell loss was not observed with or without TGF-β2 in the SB-505124, but was seen in the MMC treatment group . Asterisks indicate significant difference (p<0.05, Bonferroni multiple comparison).
