Figure 6 of Saraswat, Mol Vis 2010; 16:1525-1537.

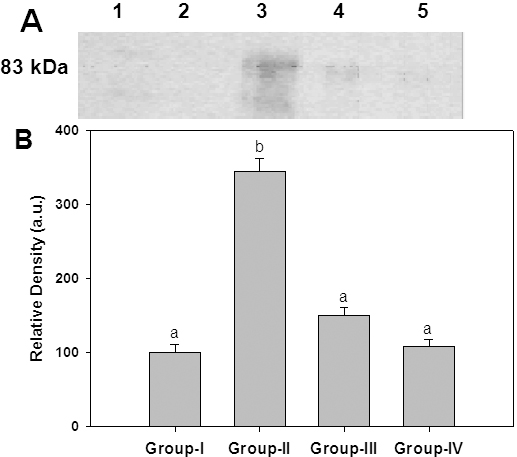

Figure 6. Immunodetection of CML in the insoluble portion of lens. A: Representative western blot profile of insoluble lens protein probed with anti-CML-BSA antibodies. Lane 1: Molecular weight markers, Lane 2: Group I, Lane 3: Group II, Lane 4: Group III, Lane 5: Group IV. B: Densitometry analysis of CML-BSA. Intensity of CML-BSA signals was quantified considering the intensity of lane 2 in upper panel as 100%. Data in lower panel are mean±SEM of three independent experiments and different superscripts denote that data are significantly different among the groups.
