Figure 3 of Suzuki, Mol Vis 2010; 16:1382-1388.

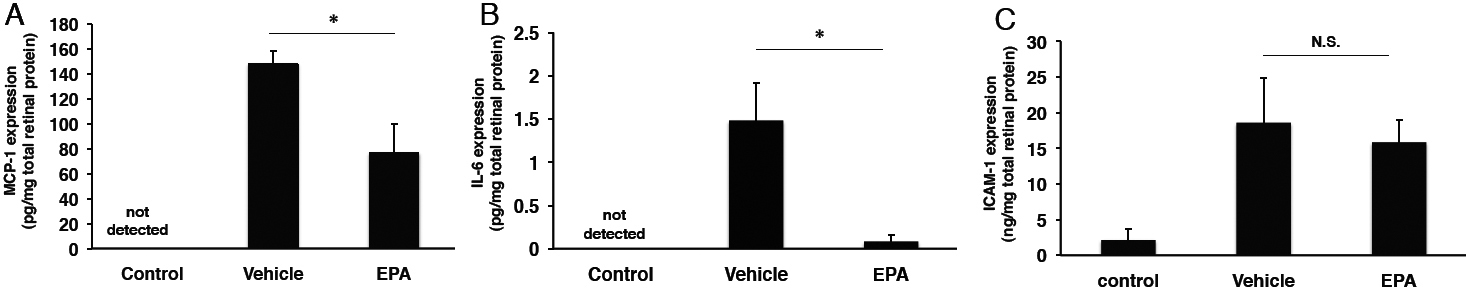

Figure 3. Role of EPA on expression of inflammatory mediators and endothelial adhesion molecules in the retina during EIU. Protein levels of MCP-1 (A), IL-6 (B), and ICAM-1 (C) in the retina from vehicle-treated normal control mice, vehicle-treated EIU mice, and EPA-treated EIU mice were measured by ELISA at 24 h after the treatment. Values are means±SEM (n=5 to 7). *p<0.05.
