Figure 2 of Ochrietor, Mol Vis 2010; 16:961-969.

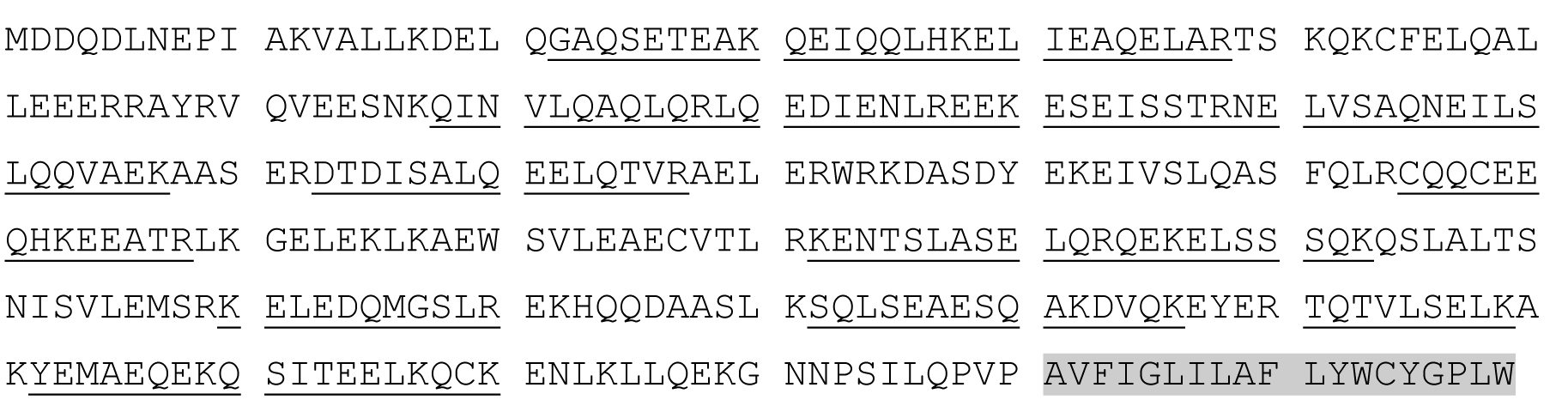

Figure 2. Amino acid sequence analysis of 2M6 antigen and TopAP protein. Mass spectroscopy analyses identified 20 unique peptides, each of which align with the TopAP polypeptide sequence (NCBI accession number gi|642486) with 95% probability. The TopAP polypeptide sequence is shown, with the regions of identity to 2M6 peptides underlined. These regions account for 186 of the 359 amino acids, which is 52% coverage of the TopAP sequence. The transmembrane region, located at the carboxy terminus of the polypeptide sequence, is highlighted in gray.
