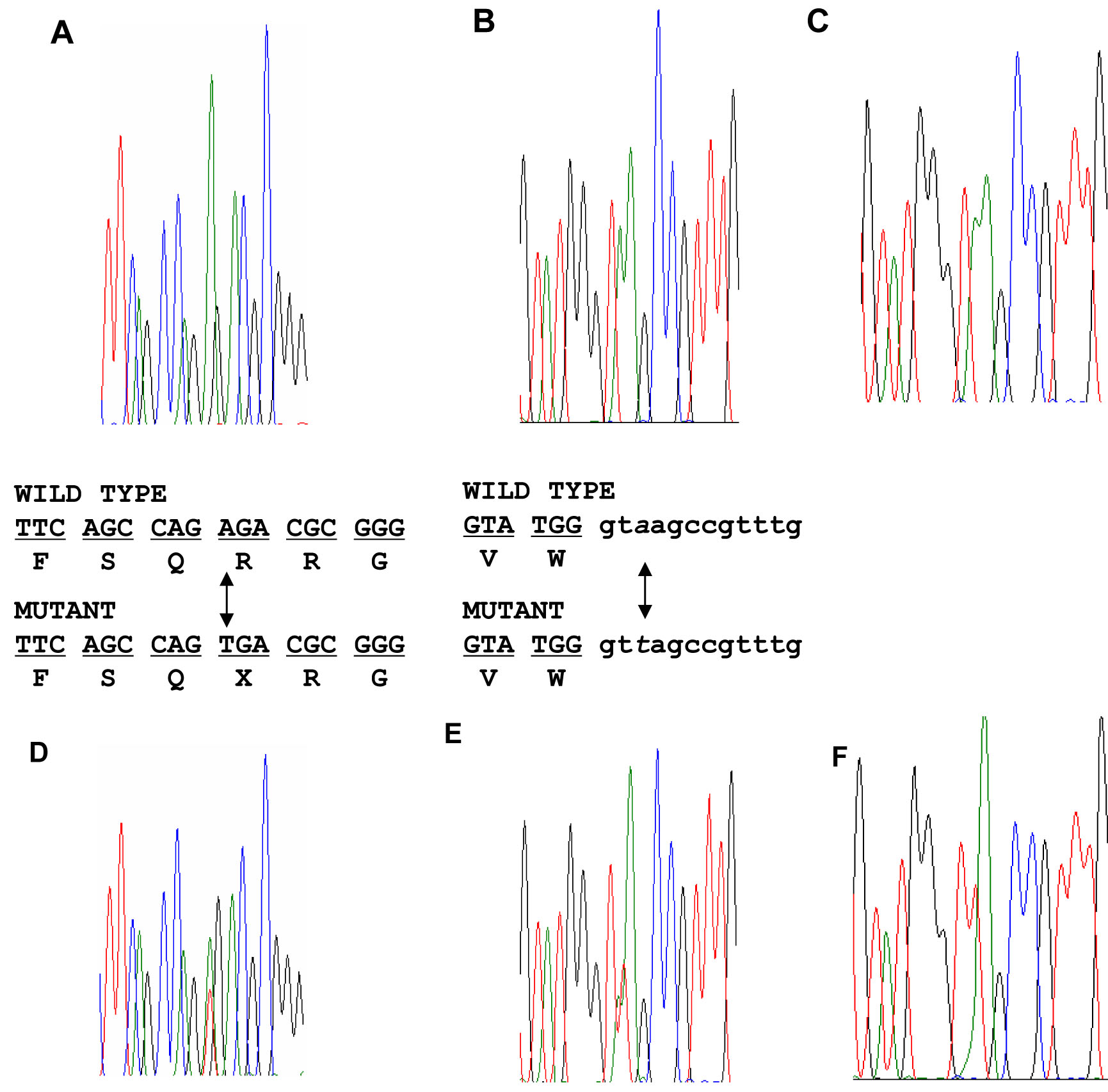

Figure 3. Identification of two novel ABCA4
mutations. DNA sequence analysis for patient II-1 showed the presence
of compound heterozygous c.655A>T and c.5312+3A>T mutations. A
and D show the sequences from a normal and affected family
member with mutation c.655A>T allele, respectively. B and E
show the sequences from a normal and affected family member with
mutation c.5312+3A>T allele, respectively. C and F
show
sequences for the wild type and mutant c.5312+3A>T allele,
respectively, which were separated by subcloning of PCR products from
an affected family member.
