Figure 5 of McBrien, Mol Vis 2009; 15:464-475.

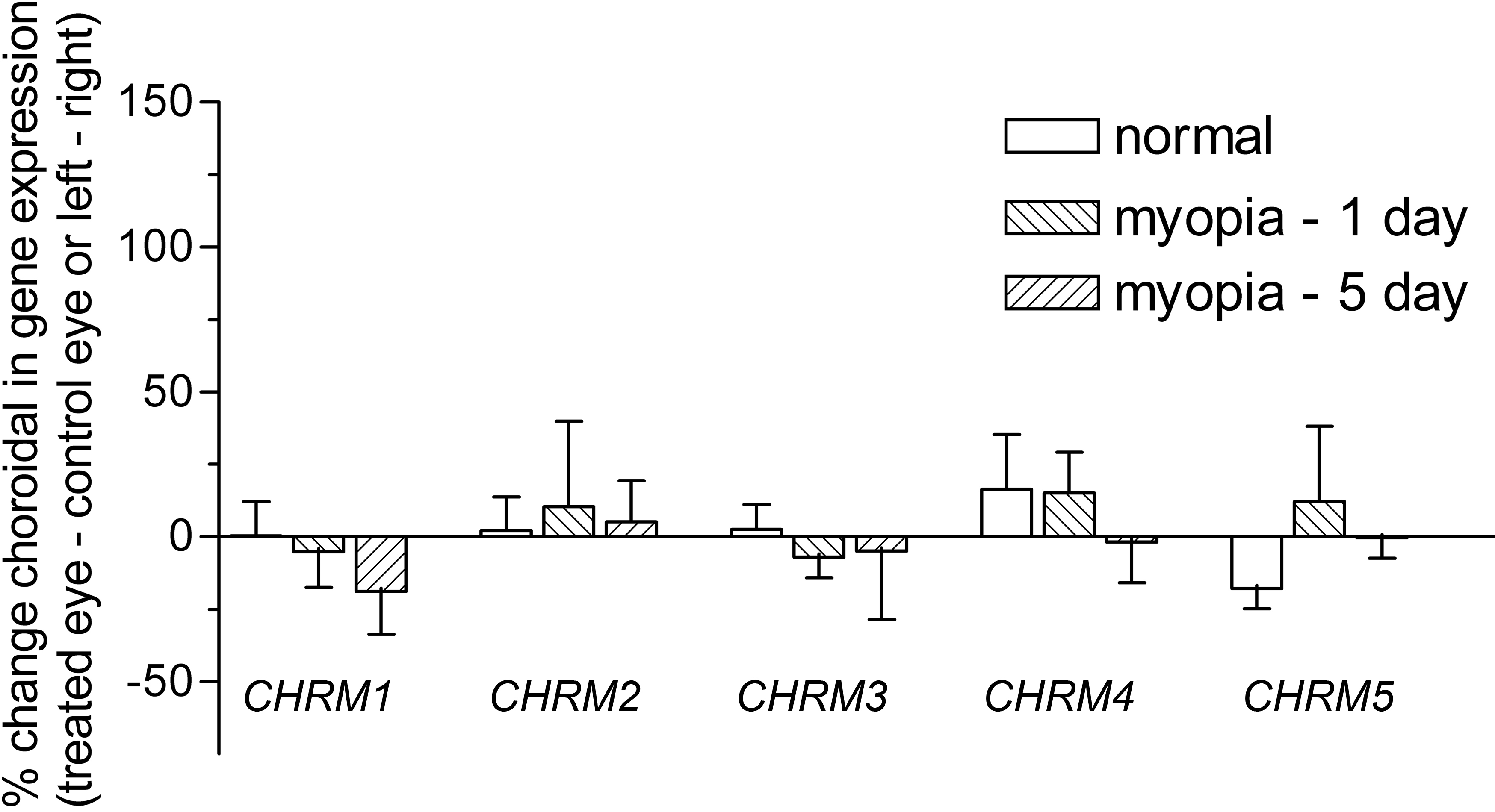

Figure 5. Regulation of choroidal muscarinic receptor subtype gene expression during myopia development. The regulation of the five mAChRs was assessed in the tree shrew choroid using real-time PCR and the DNA-binding dye, SYBR green I. Data was calculated relative to the housekeeping gene, HPRT, and expressed relative to the contralateral control eye (for myopic groups) or left/right eyes (for normal groups). Data are shown as the mean percentage change±SEM (n=5 for 1 and 5 day CHRM2 gene data, all other data n=6).
