Figure 6 of Tanwar, Mol Vis 2009; 15:2926-2937.

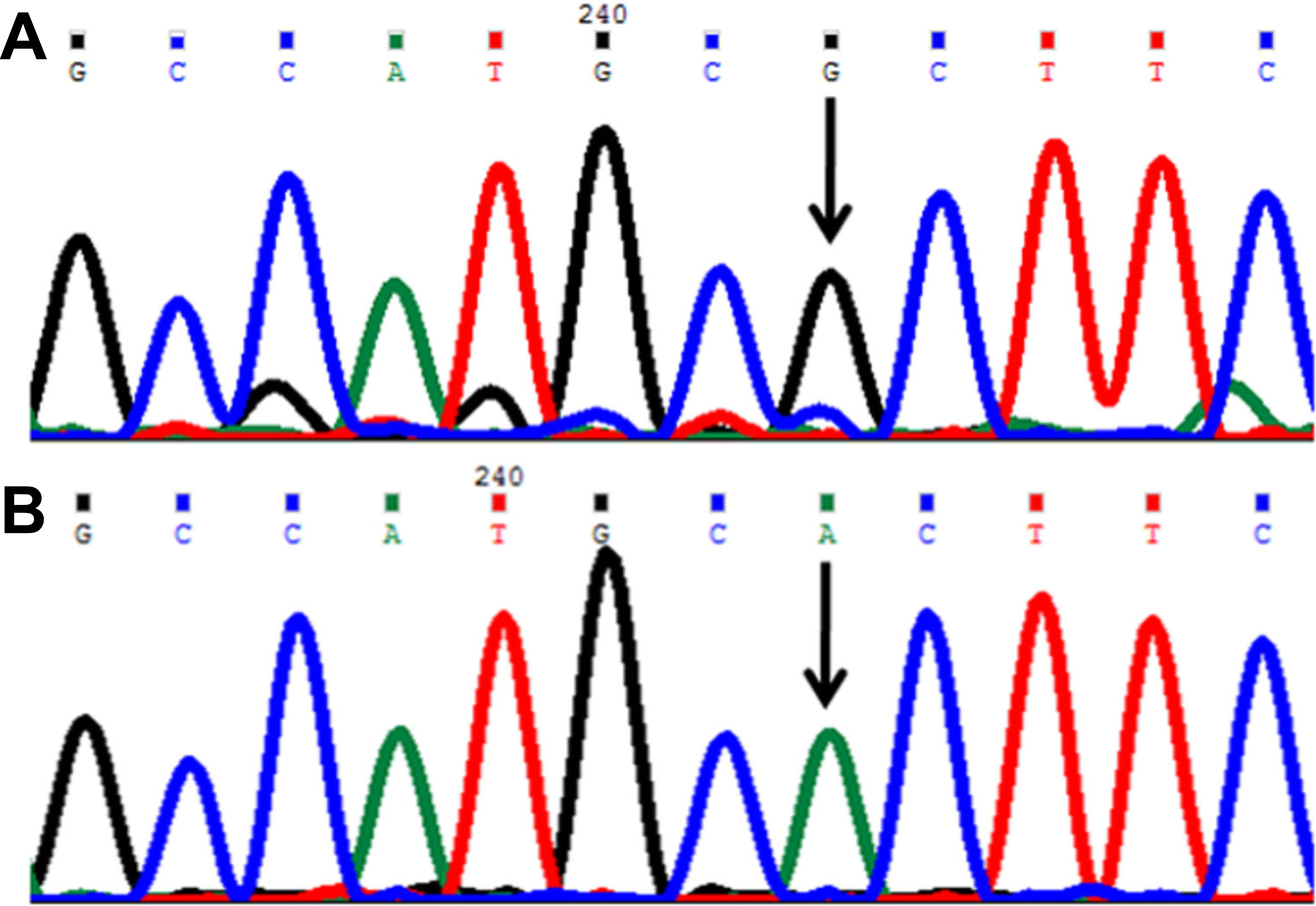

Figure 6. DNA sequence chromatogram of CYP1B1 exon 3 equivalent to codon 388-391. A: The reference sequence derived from control is shown. B: Sequence derived from congenital glaucoma patient P56 shows homozygous c.11169G>A, which predicts a codon change CGC>CAC and p.R390H mutation.

Tanwar, Mol Vis 2009; 15:2926-2937. http://www.molvis.org/molvis/v15/a310

©2009 Molecular Vision http://www.molvis.org/molvis/

ISSN 1090-0535
