Figure 5 of Tanwar, Mol Vis 2009; 15:2926-2937.

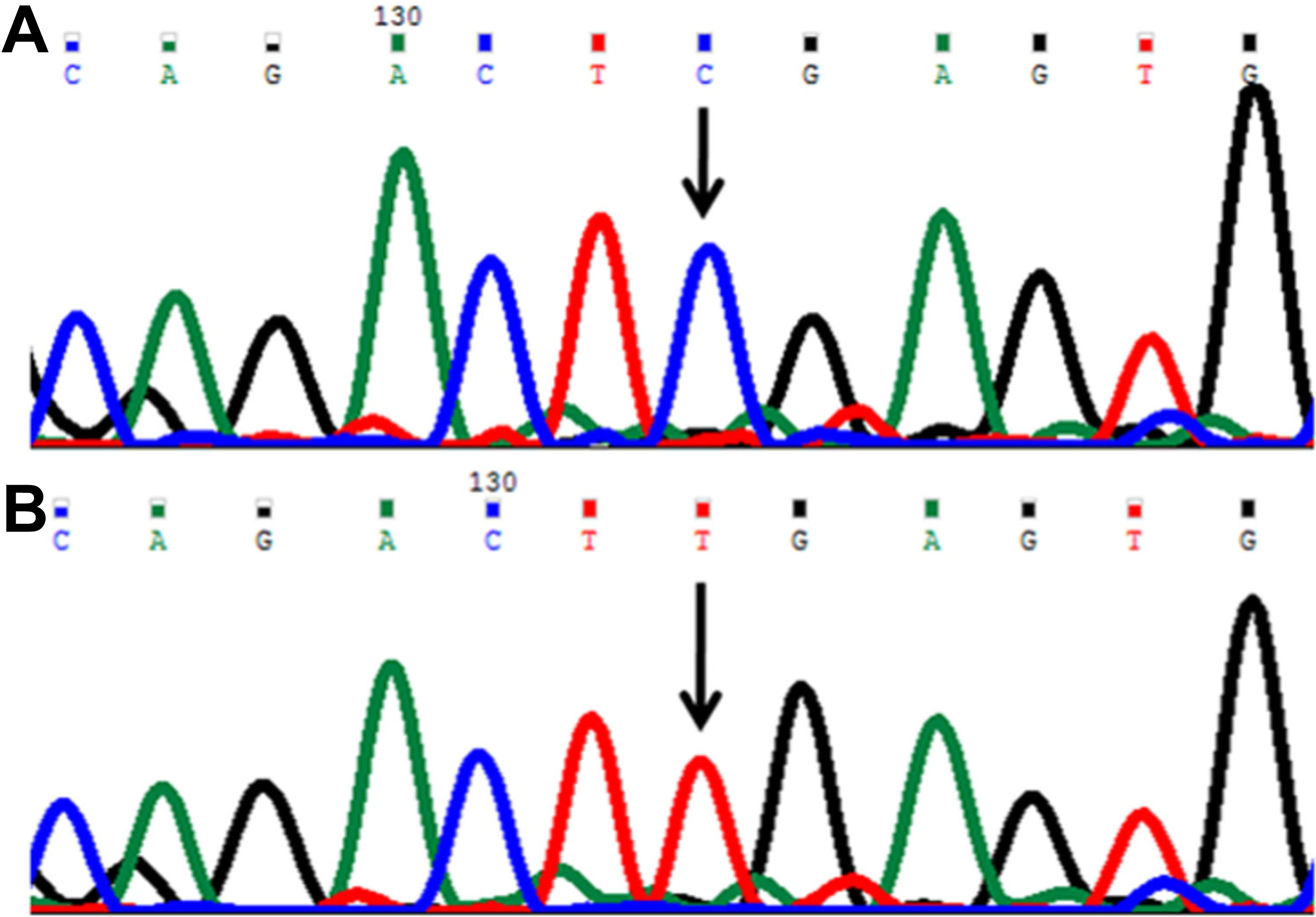

Figure 5. DNA sequence chromatogram of CYP1B1 exon 3 equivalent to codon 353-356. A: The reference sequence derived from control is shown. B: Sequence derived from congenital glaucoma patient P70 shows homozygous c.1063C>T, which predicts a codon change CGA>TGA and p.R355X nonsense mutation.
