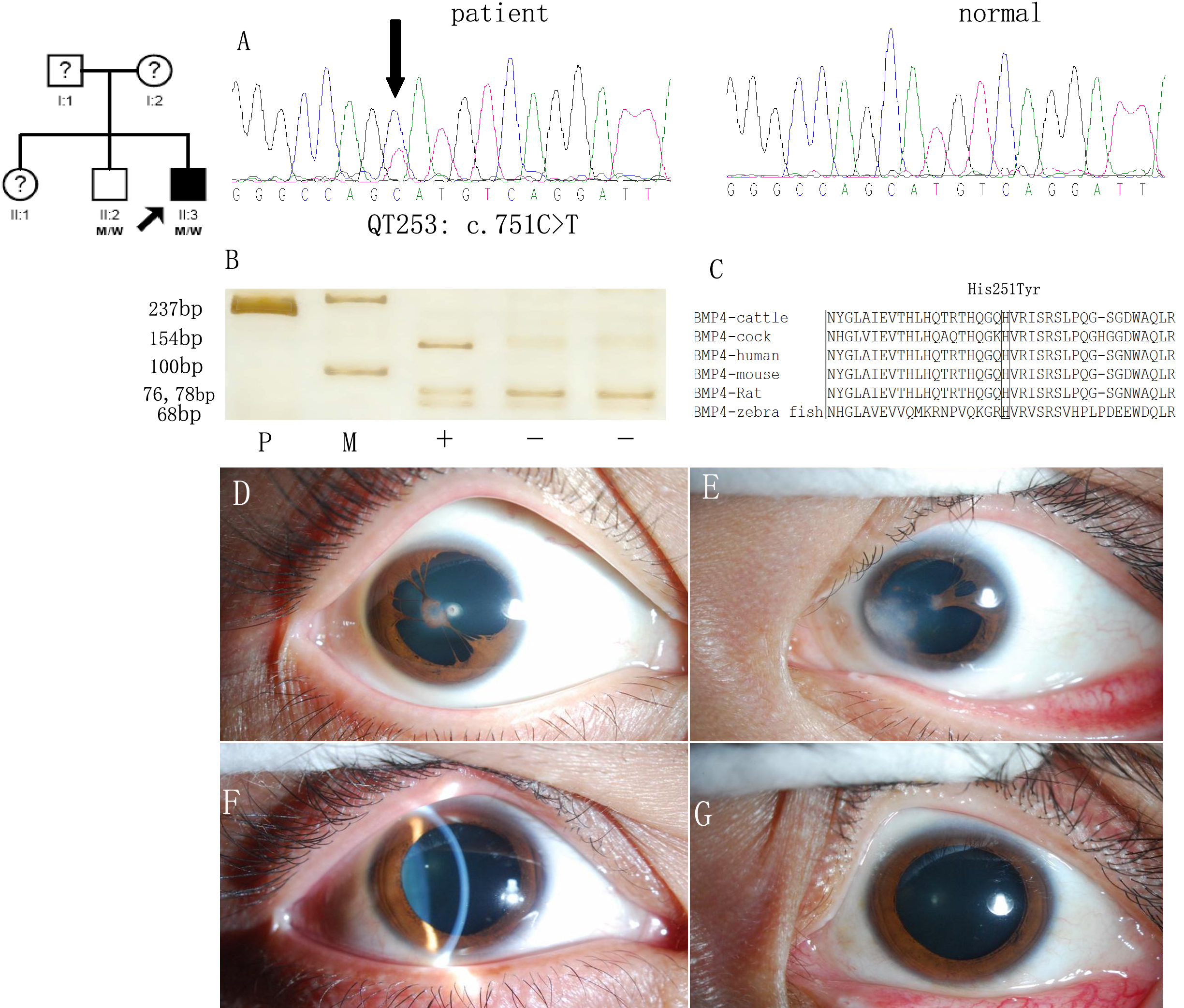

Figure 2. BMP4 variation and
associated phenotype. A: Sequence chromatogram demonstrated the
c.751C>T variation in BMP4 from the patient (left) and
normal sequence from a control (right). B: The c.751C>T
variation in BMP4 detected by PCR-RFLP analysis (P: PCR
products [237 bp] and M: marker, showing 100 bp and 250 bp,
respectively; the plus sign [+] indicates CviAII-digested-products with
heterozygous c.751C>T variation; the minus sign [-] indicates
CviAII-digested products without the c.751C>T variation). C:
Protein alignment of human BMP4 (residues 231–271) with other BMP4
orthologs from cattle, cock, mouse, rat, and zebra fish. D and E:
Ocular
phenotype of the proband showing bilateral microcornea, corneal
opacities, multiple pupils, persistent iris membrane adhering to cornea
(right eye) or lens capsule (left eye), and anterior pole cataract
(right eye). F and G: Normal ocular phenotype of the
proband’s healthy brother, which also carried the heterozygous
c.751C>T variation in BMP4.
