Figure 4 of
Vincent, Mol Vis 2009; 15:2544-2553.

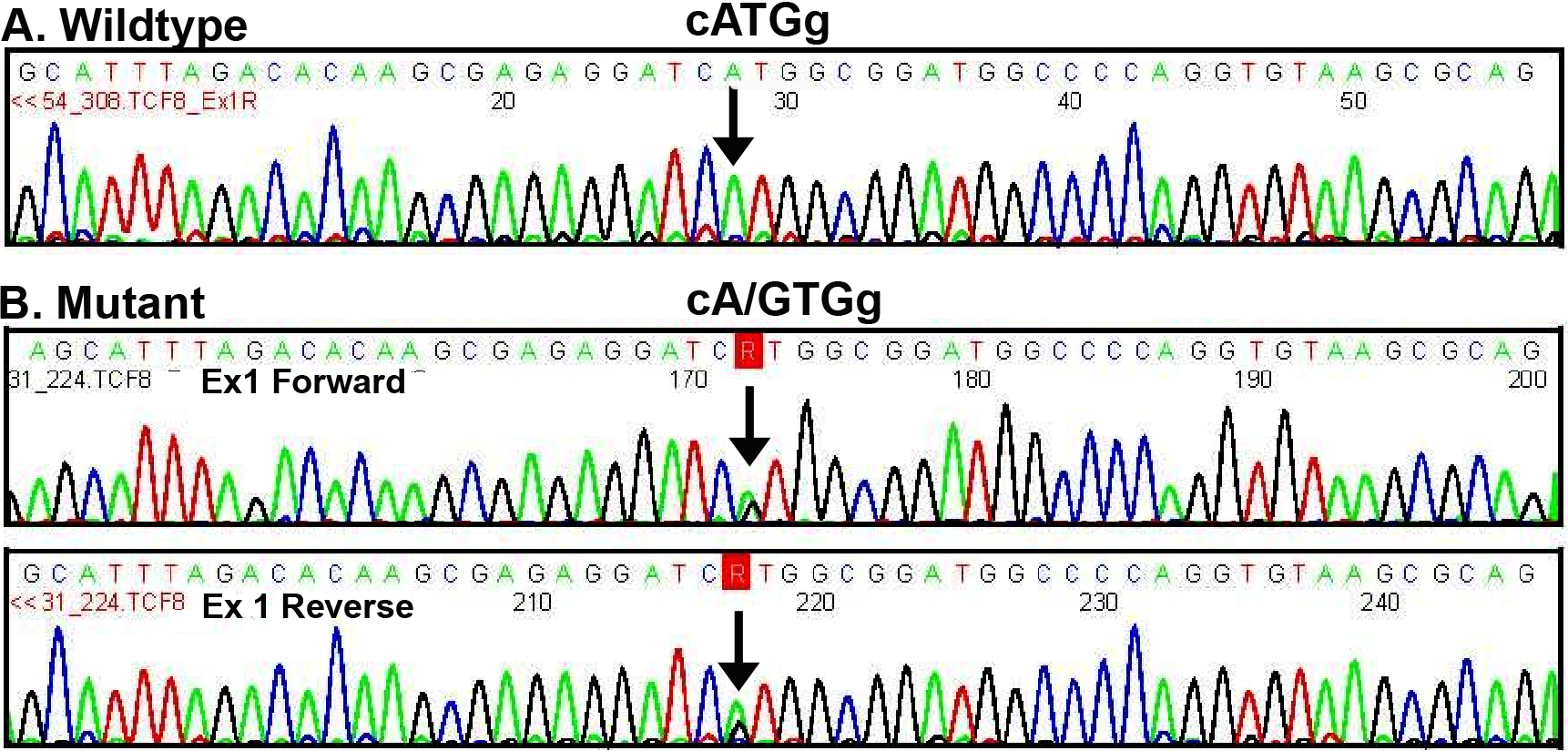

Figure 4.
Electropherograms demonstrating
ZEB1
p.1Met>Val mutation in exon 1.
A
: Wild-type sequence,
B
: Mutant heterozygote with c.1A>G demonstrated with bidirectional sequencing.
