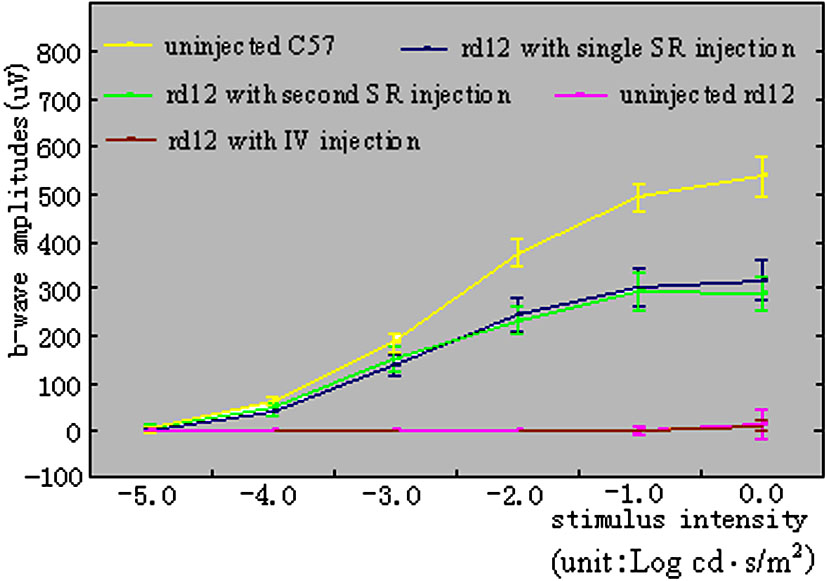

Figure 4. ERG signals following different injections. Dark-adapted ERG b-wave amplitudes under different intensities show dramatic ERG
restoration in rd12 mice 5 months following subretinal injection. Statistical analysis demonstrates that functional restoration
following subretinal injection is independent of whether the partner eye was pretreated with the same vector or not. Each
of the five groups had three mice. The yellow curve represents the uninjected, normal C57BL/6J eyes at seven months of age.
The blue curve represents the rd12 eyes at seven months of age following an initial subretinal injection of scAAV5-smCBA-hRPE65 when they were eight weeks old.
The brown curve represents the right eyes of rd12 mice six months following the intravitreal injection that occurred when they were four weeks old. The green curve represents
the left eyes of rd12 mice five months following the subretinal injection they received when they were eight weeks old (the right eyes of these
mice received the intravitreal vector four weeks before their subretinal injections). The pink curve represents the untreated
rd12 eyes at seven months of age. Bars: mean±SD.
