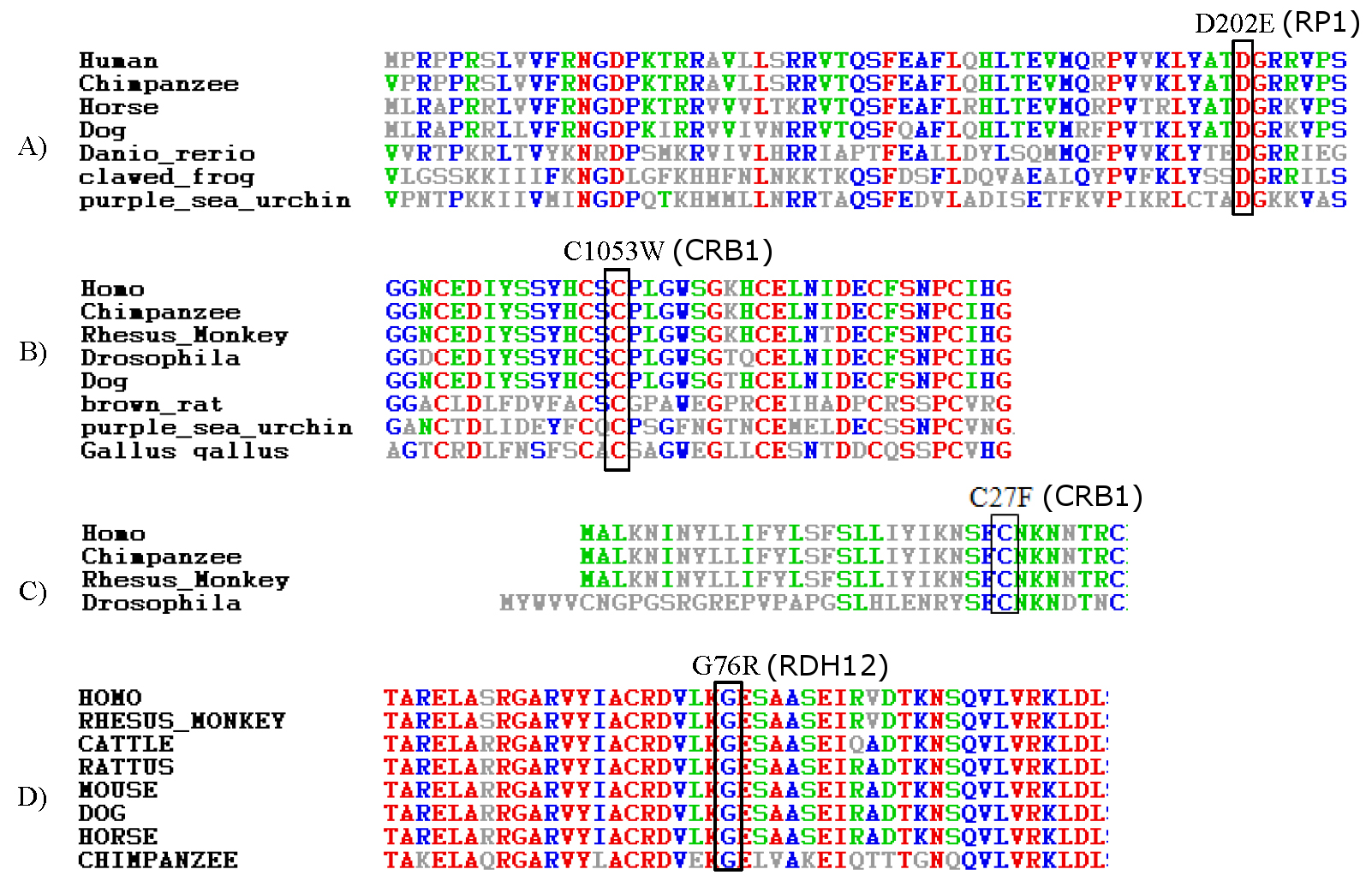

Figure 2 of Aldahmesh, Mol Vis 2009; 15:2464-2469.


Figure 2. Analysis of the conservation level of the missense mutations identified in this study. For each missense mutation, a panel of orthologs from different organisms is shown to demonstrate the conservation of the involved residue across species, which suggests that a change of that residue may adversely affect the protein function.
