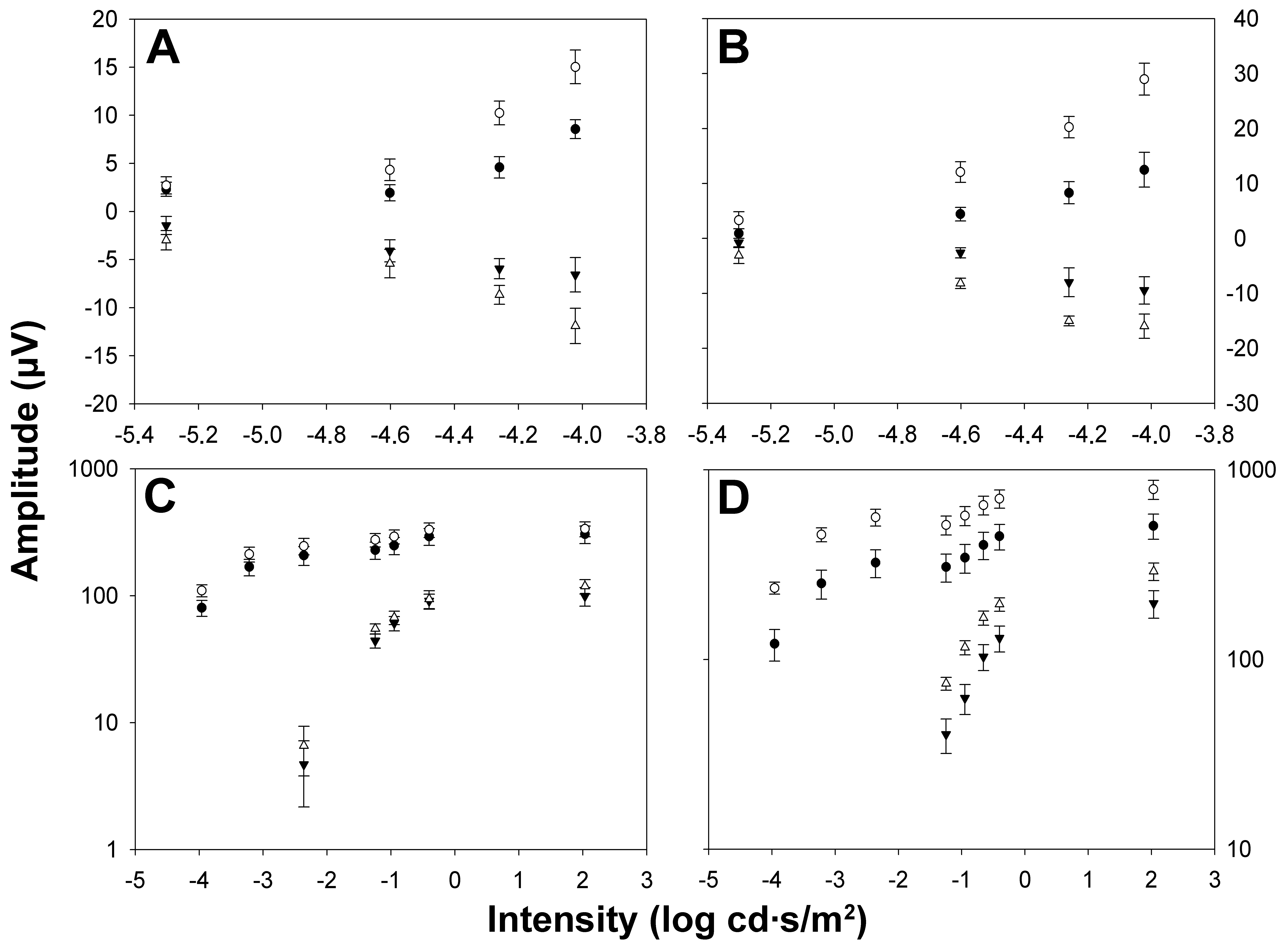

Figure 6. Electroretinographic amplitude
measurements four weeks after optic nerve transection. Averaged data
(mean±SEM) of ERG amplitudes versus stimulus intensity both from albino
(A, C; n=9) and pigmented rats (B, D;
n=6) is shown from recordings obtained four weeks after ONT. Open
symbols show data averaged from unoperated right eyes and filled
symbols show data averaged from operated left eyes. A, B:
Data corresponding to positive scotopic threshold responses (pSTR) are
shown as circles and that corresponding to negative scotopic threshold
responses (nSTR) are shown as triangles. C, D:
Amplitudes corresponding to the a-wave are shown as triangles and those
corresponding to b-wave are shown as circles. A significant reduction
in the wave amplitudes of the pSTR, nSTR, b-wave scotopic response, and
a- and b-wave was observed in the operated eyes (t-test;
p<0.001) when compared with the unoperated eyes. The significant
reduction of ERG wave amplitudes in operated eyes versus unoperated
eyes is evident only in the pSTR and nSTR responses (p<0.001) in
albino rats. A significant reduction for the pSTR, nSTR, b-wave
scotopic response, and a- and b-wave of the mixed response was observed
in pigmented rats (p<0.001).
