Figure 3 of Alarcón-Martínez, Mol Vis 2009; 15:2373-2383.

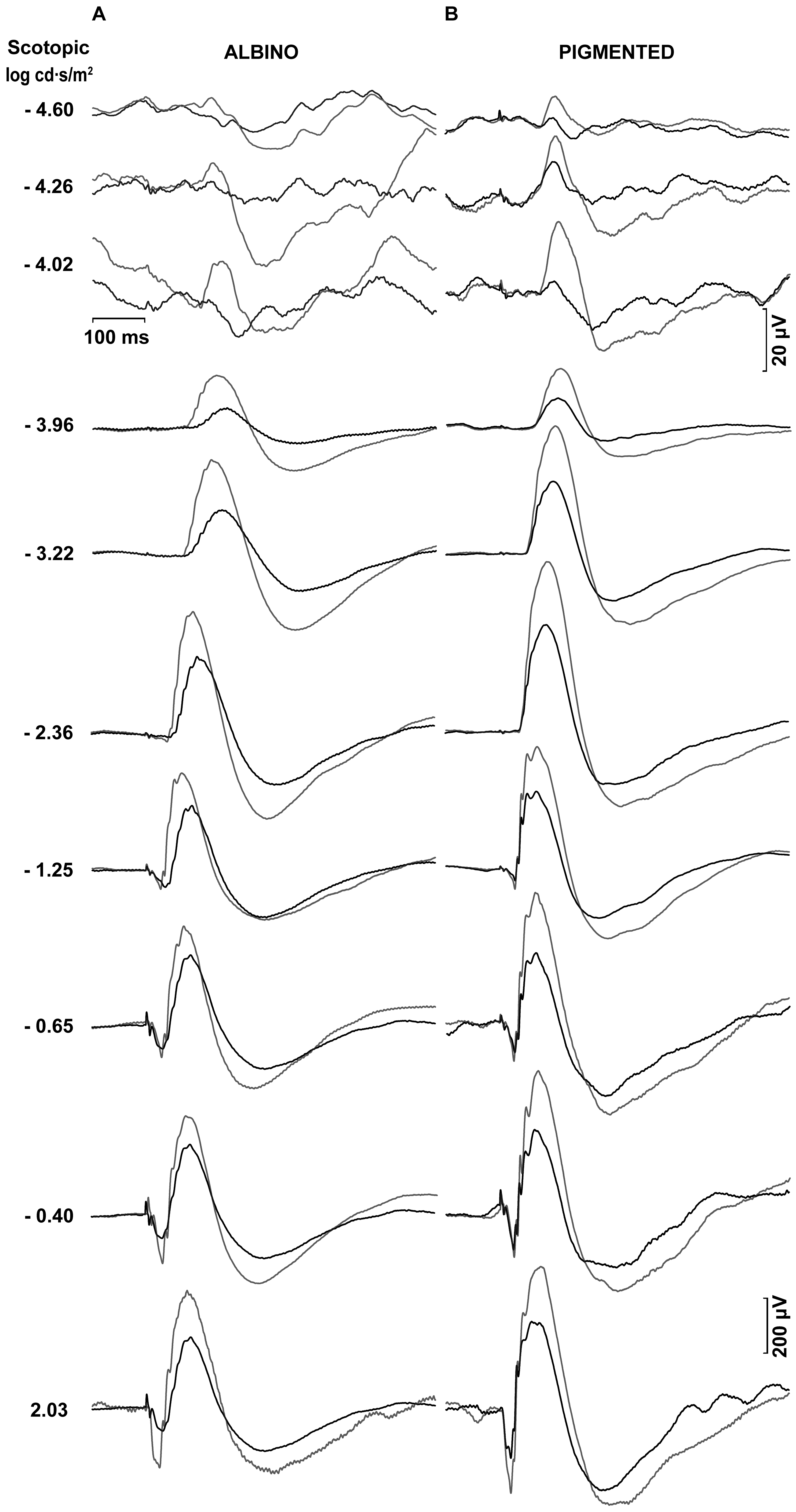

Figure 3. Scotopic electroretinographic recordings two weeks after optic nerve transection. Examples of the ERG traces recorded in an albino (A) and pigmented (B) rat in response to flash stimuli of increasing intensity for the unoperated right eye (thin traces) and for the operated left eye (bold traces) two weeks after optic nerve transection. The intensity of the flash stimuli is indicated to the left of the recording traces. Reduction in the pSTR and nSTR responses from operated eyes versus unoperated eyes is clearly evident in both albino and pigmented rats.
