Figure 2 of Brejchova, Mol Vis 2009; 15:2364-2372.

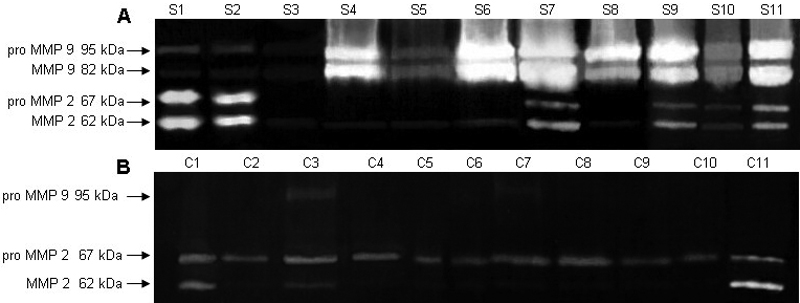

Figure 2. Gelatin zymography of matrix metalloproteinases 2 and 9 in melted and control corneas. Melted specimens (A) S1 and S2 showed extremely high levels, and specimens S7, S9, and S11 considerable levels, of both the proenzyme (67 KDa band) and the active form of MMP 2 (62 kDa band). Levels of MMP 9 proenzyme (95 kDa band) and the active form (82 kDa band) were extremely high in S4 and S6-S11, and prominent in S5. Weak bands for both MMP 9 forms were found in specimens S1-S3. In control samples (B), a moderate level of the MMP 2 proenzyme was present in all specimens, whereas the active form of MMP 2 was either not present or very faint, except in samples C1, C3, and C11. As for MMP 9 proenzyme, only C3 and C7 showed faint bands.
