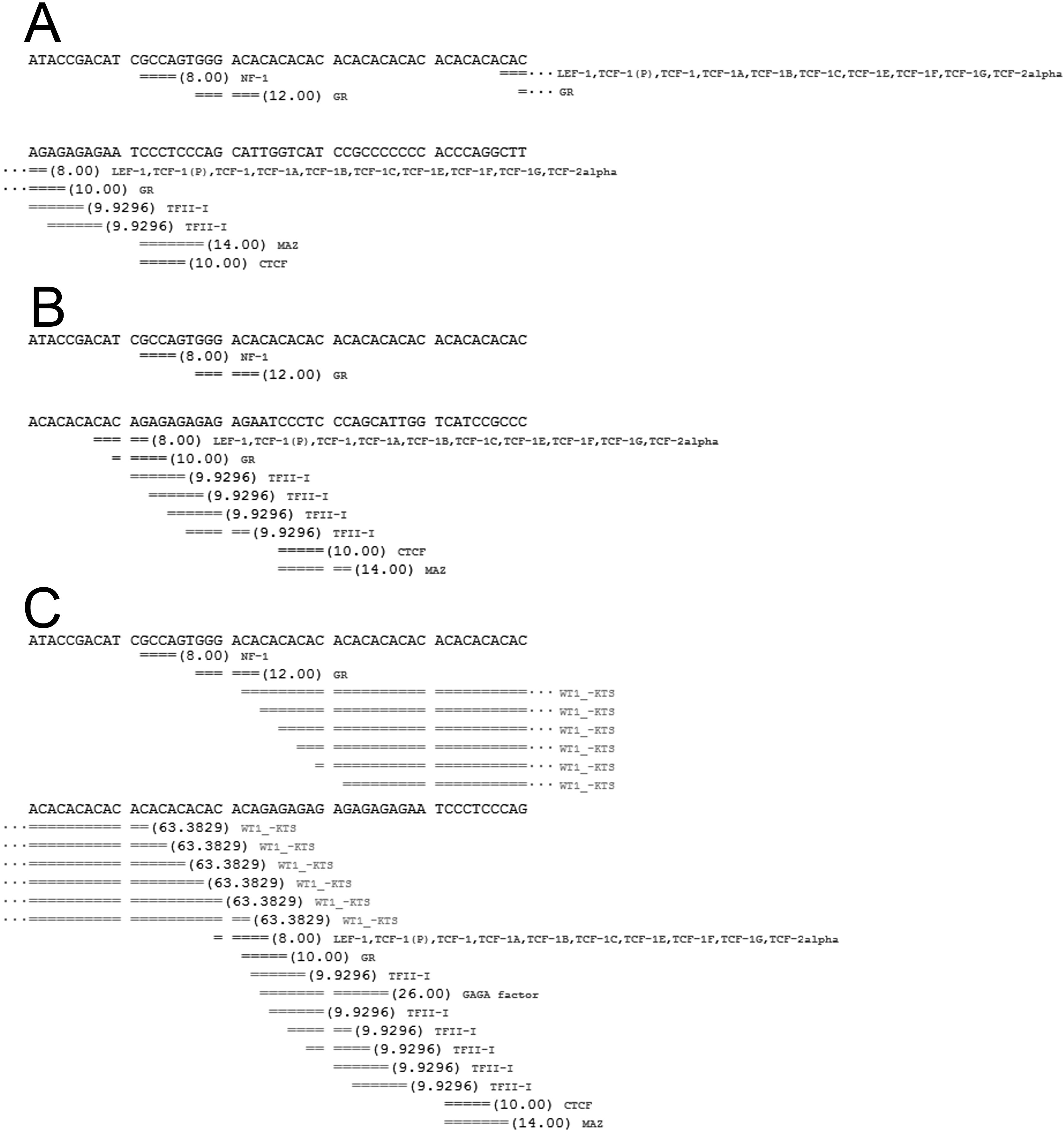

Figure 2. Transcription factor binding
site prediction for dinucleotide repeats in the PAX6 P1
promoter. The cloned PAX6 P1 promoter DNA sequence was used to
predict transcription factor binding sites. Predicted transcription
factor binding sites around the region of the dinucleotide repeats are
shown, and different lengths of AC and AG repeats are assessed. As in
the immunoblotting analysis, [(AC)20(AG)6] was
set as a reference. A: Predicted transcription factor binding
sites for (AC)15(AG)4 are shown. B:
Predicted transcription
factor binding sites for (AC)20(AG)6 are shown. C:
Predicted
transcription factor binding sites for (AC)26(AG)8
are shown.
