Figure 3 of Tackenberg, Mol Vis 2009; 15:1886-1896.

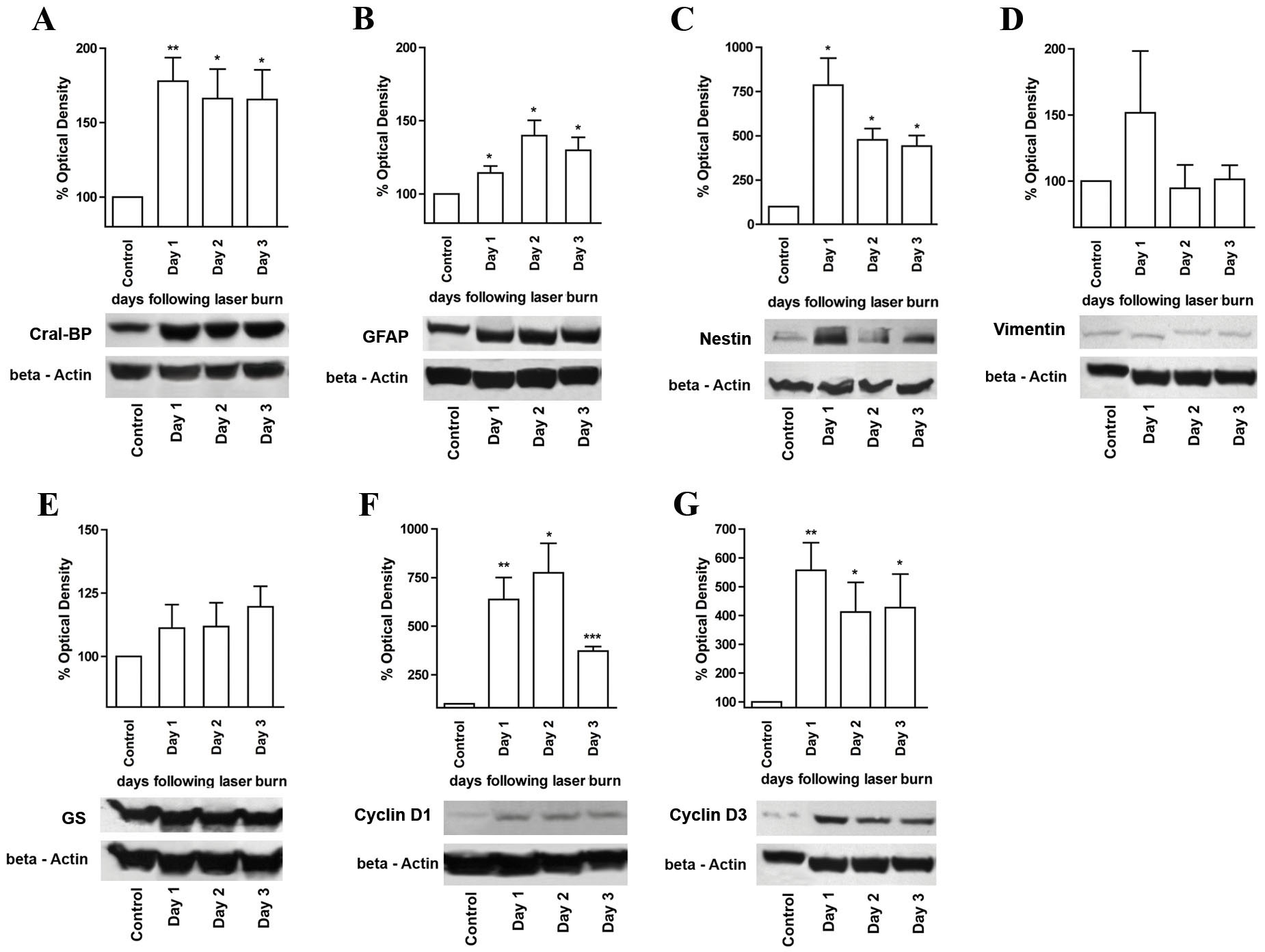

Figure 3. Western blot analysis of Müller cell- and cell cycle marker expression. Western blots were performed and analyzed to confirm our immunohistochemical findings. Antibodies, targeted against Cral-BP (A), GFAP (B), nestin (C), vimentin (D), GS (E), Cyclin D1 (F), and Cyclin D3 (G), were used. A significant increase in the expression of the markers Cral-BP, GFAP, nestin, Cyclin D1, and Cyclin D3 was observed. Asterisks denote the following levels of confidence: *≤0.05, **≤0.01, and ***≤0.001.
