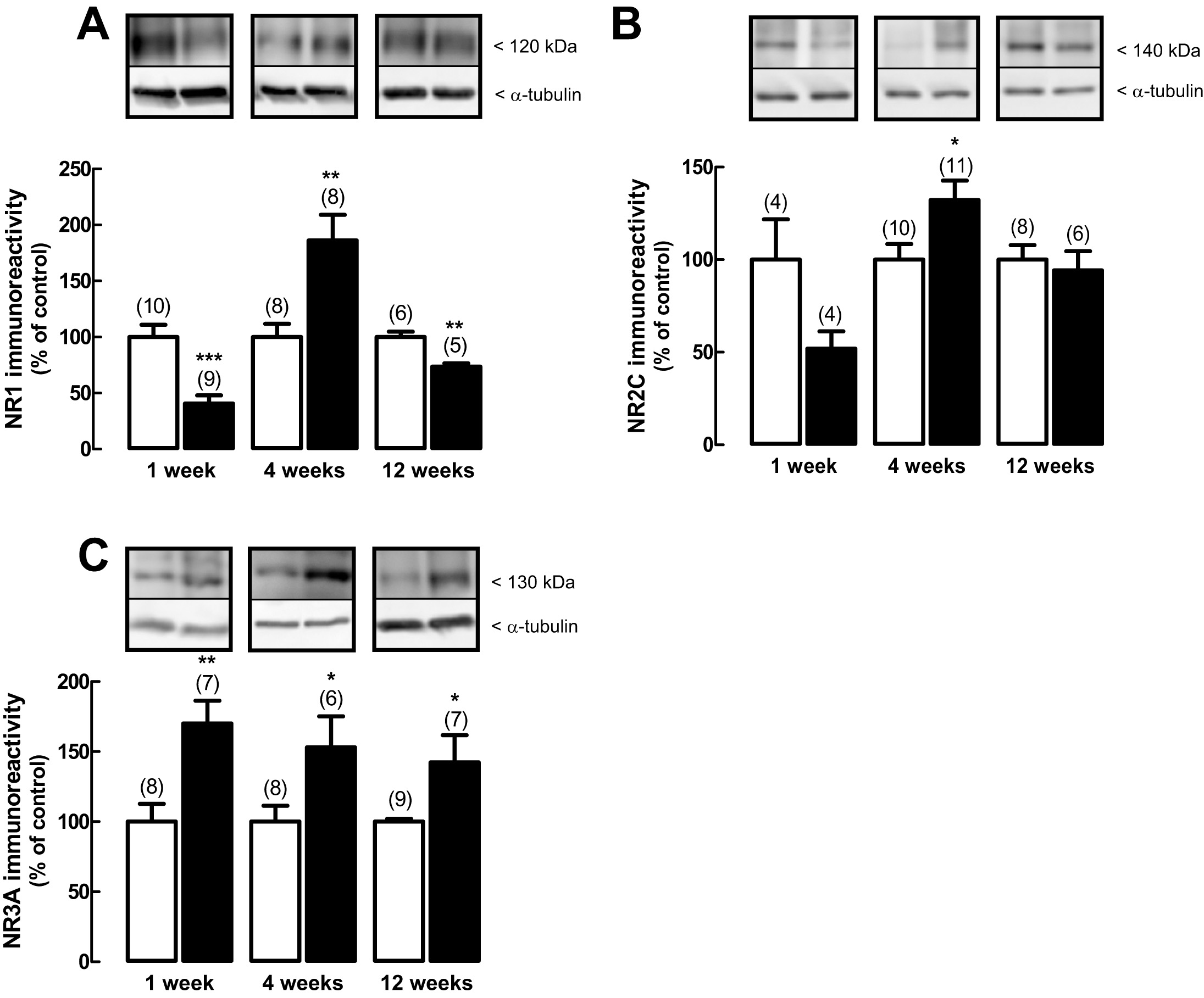

Figure 4. Effect of diabetes on the
protein levels of NMDA receptor subunits. Total retinal extracts were
prepared from rat retinas with one, four, and 12 weeks of diabetes
(black bars) and from age-matched control rats (white bars). Extracts
were assayed for (A) NR1, (B) NR2C, and (C) NR3A
subunits immunoreactivity by western blot analysis. Representative
western blots are presented above the graphs for each time point
tested. The densitometry of each band was analyzed. The results are
expressed as percentage of age-matched controls and are presented as
the mean±SEM, for the indicated number of animals. In each western blot
analysis, a reprobing for detection of α-tubulin was performed to
confirm that similar amounts of protein were applied to the gel. The
asterisk indicates a p<0.05, the double asterisk indicates a
p<0.01, and the triple asterisk indicates a p<0.001,
significantly different from control, using the two-tailed Student’s t-test.
