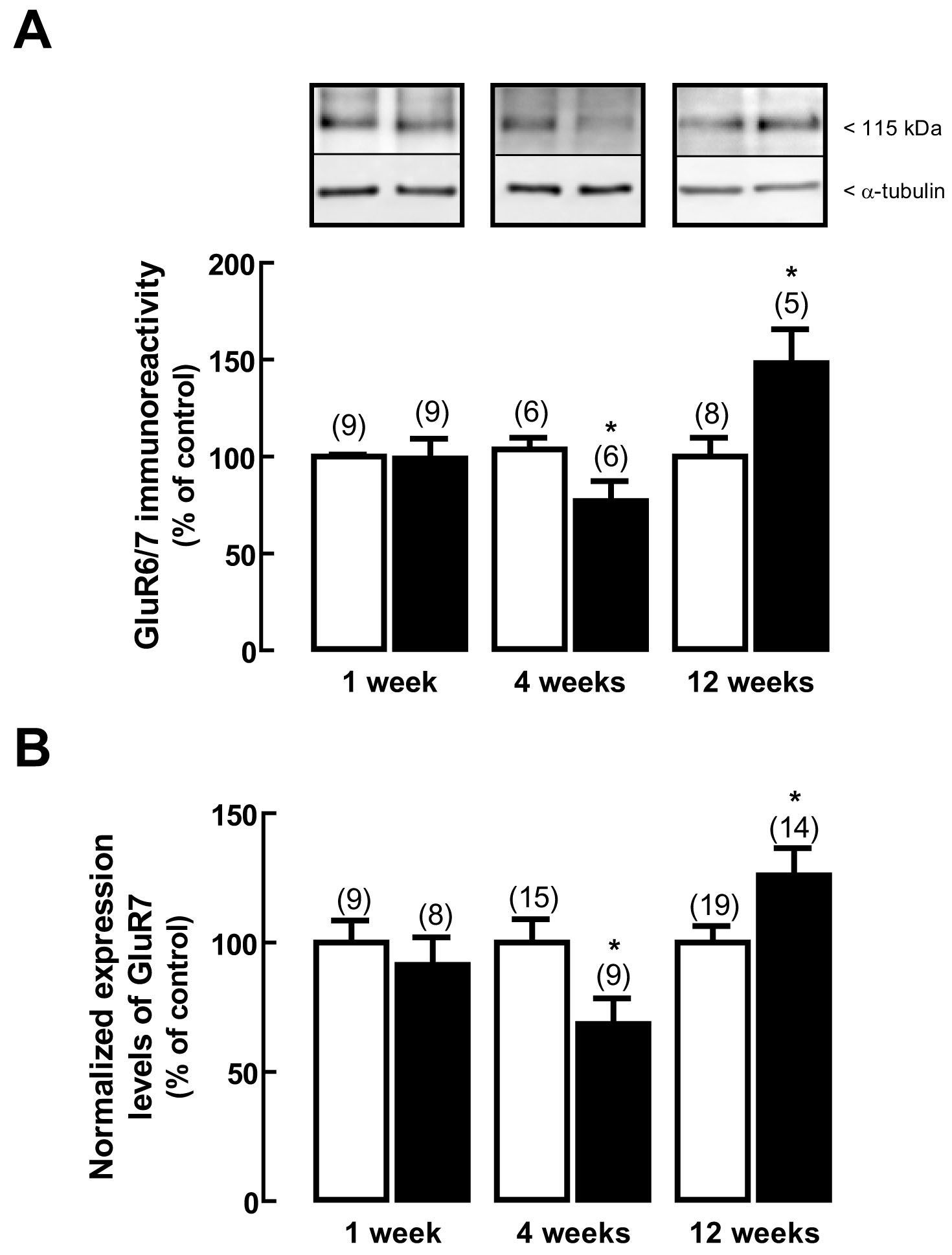

Figure 3. Effect of diabetes on kainate
receptor subunits expression. Total protein extracts (A) and
total RNA extracts (B) were prepared from rat retinas with one,
four, and 12 weeks diabetic rat retinas (black bars) and from
age-matched controls (white bars). A: Total retinal extracts
were assayed for GluR6/7 subunits immunoreactivity by western blot
analysis. Representative western blots are presented above the graph.
The densitometry of each band was analyzed. The results are expressed
as percentage of age-matched controls and are presented as the
mean±SEM, for the indicated number of animals. In each western blot
analysis, a reprobing for detection of α-tubulin was performed to
confirm that similar amounts of protein were applied to the gel. The
asterisk indicates a p<0.05, significantly different from control,
using the two-tailed Student’s t-test. B: The
transcript levels of GluR7 subunit were analyzed by qPCR. The results
represent the normalized expression levels for GluR7 subunit, as
explained in Methods, and are presented as the mean±SEM, for the
indicated number of animals. The asterisk indicates a p<0.05,
significantly different from control, using the two-tailed Student’s t-test.
