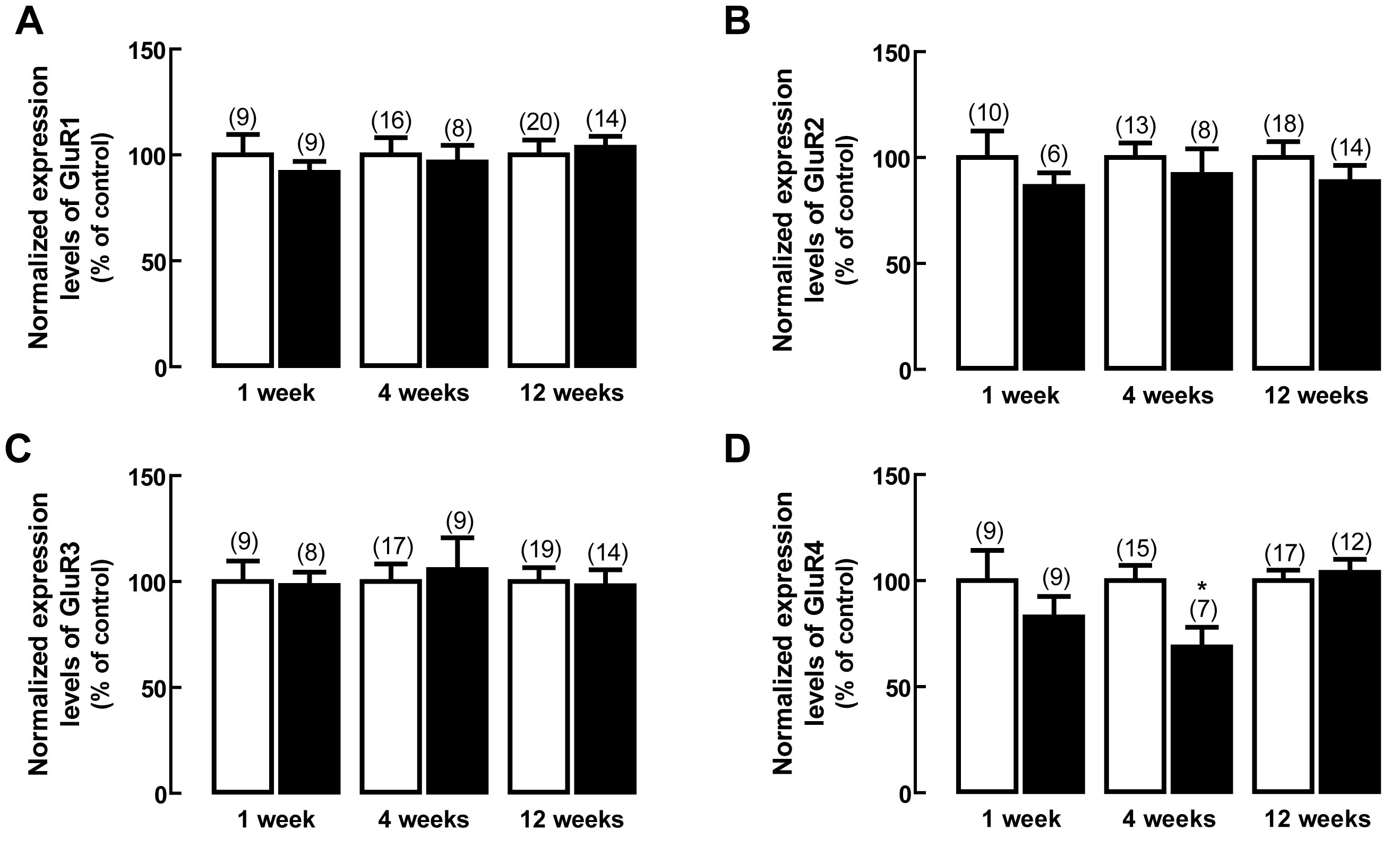

Figure 2. Effect of diabetes on the
transcript levels of AMPA receptor subunits. Total RNA was isolated
from rat retinas with one, four and 12 weeks of diabetes (black bars)
and from rat retinas of age-matched controls (white bars). The
transcript levels of (A) GluR1, (B) GluR2, (C)
GluR3, (D) GluR4 subunits were analyzed by qPCR. The results
represent the normalized expression levels for each subunit, as
explained in Methods, and are presented as the mean±SEM, for the
indicated number of animals. The asterisk indicates a p<0.05,
significantly different from control, using the two-tailed Student’s t-test.
