Figure 6 of Biswas, Mol Vis 2009; 15:1599-1610.

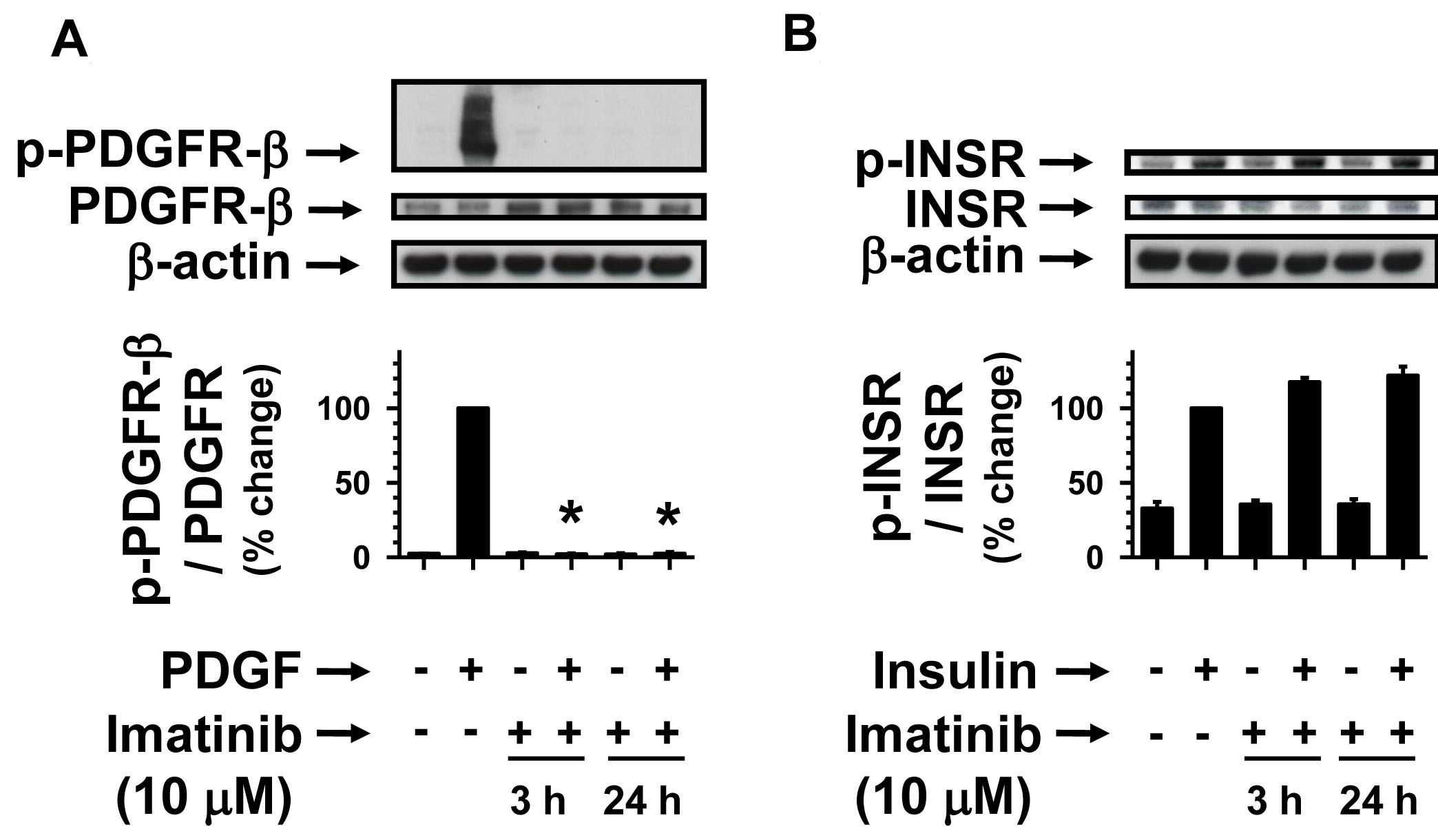

Figure 6. Time-dependent effects of imatinib on PDGF-induced versus insulin-induced receptor phosphorylation. Serum-deprived (24 h) RGC-5 cells were pretreated without (control) or with 10 µM imatinib for increasing time intervals (3 h and 24 h). Subsequently, control and imatinib-treated cells were stimulated with either 30 ng/ml PDGF or 30 nM insulin for 6 min. The cell lysates were subjected to immunoblot analysis for receptor tyrosine phosphorylation (A,B) using the indicated primary antibodies (See Methods). To normalize the changes in protein phosphorylation in the immunoblots, we used β-actin as an internal control. Note: For data analyses, PDGF- or insulin-induced receptor phosphorylation in the absence of imatinib was normalized to 100%. The respective bar graphs shown are the mean±SEM values from 3 to 4 experiments. The asterisk indicates a p<0.05 compared with the respective PDGF-induced receptor phosphorylation.
