Figure 2 of Zhang, Mol Vis 2009; 15:1521-1529.

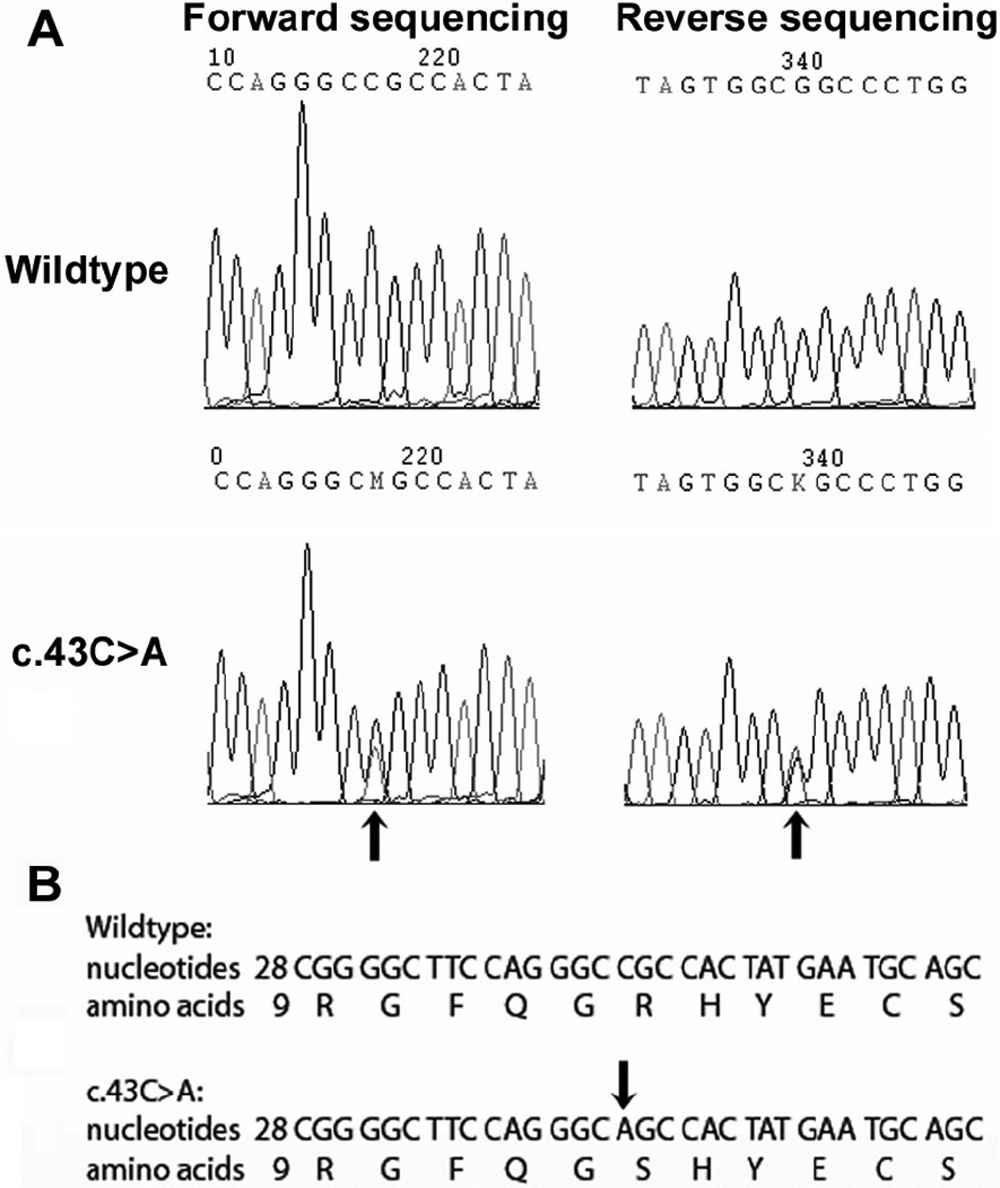

Figure 2. R15S mutation in Family A. A: The upper panel showed the forward (on the left) and the reverse (on the right) DNA segments of wildtype CRYGD. The lower panel displayed the forward and the reverse sequences of mutant CRYGD. The mutation of c.43C>A was indicated by arrow both in forward and reverse sequences. B: The DNA sequences in the upper lines and amino acid sequences in the lower lines were compared between wildtype and mutant CRYGD. The arrow denotes the nucleotide change.
