Figure 4 of Lei, Mol Vis 2009; 15:1374-1382.

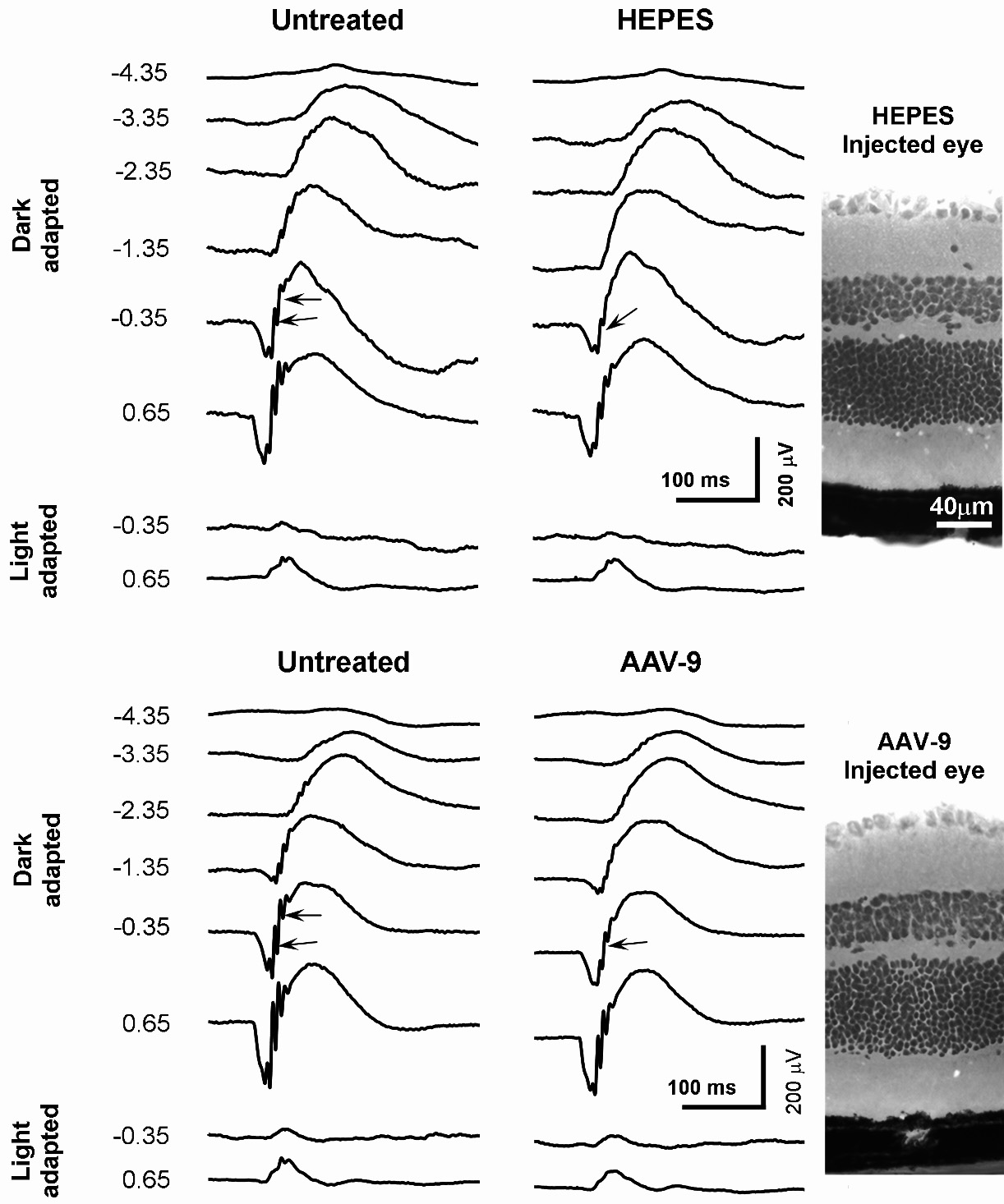

Figure 4. Effects of subretinal delivery of an AAV-9.RSV.AP vector on mouse electroretinogram. Dark-adapted and light-adapted electroretinograms were recorded from 12-month-old C57BL/6J mice at 5 weeks after subretinal injection of AAV-9.RSV.AP or HEPES buffer. One eye was injected and the contralateral eye was untreated. Black arrows indicate OPs. The numbers to the left of the ERG signals represent the stimulus light intensity (log cd-s/m2). The background light for light-adaptation was 30 cd/m2.
