Figure 1 of Rutland, Mol Vis 2009; 15:1260-1269.

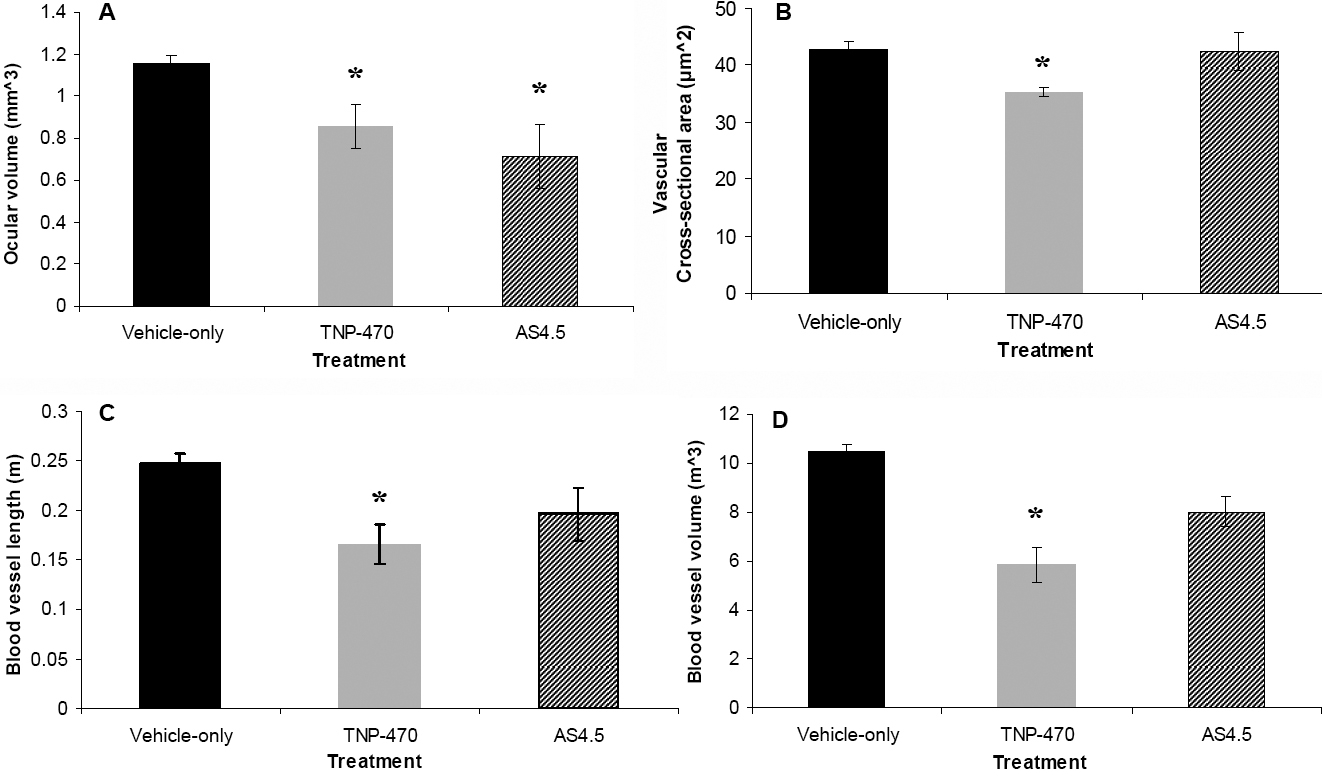

Figure 1. Hyaloid blood vessel dimensions from E18.5 mice treated with vehicle-only, TNP-470, or AS4.5 solution. The graphs show ocular volume (A) where the asterisk indicates p<0.04, vascular cross sectional area (B) where the asterisk indicates p<0.01, vascular length (C) where the asterisk indicates p<0.001, and vascular volume (D) where the asterisk indicates p<0.001 in vehicle-only (control), TNP-470-treated, and AS4.5-treated animals. Statistical comparisons between groups were performed using t-test for equality of means.
