Figure 3 of Wei, Mol Vis 2009; 15:1243-1251.

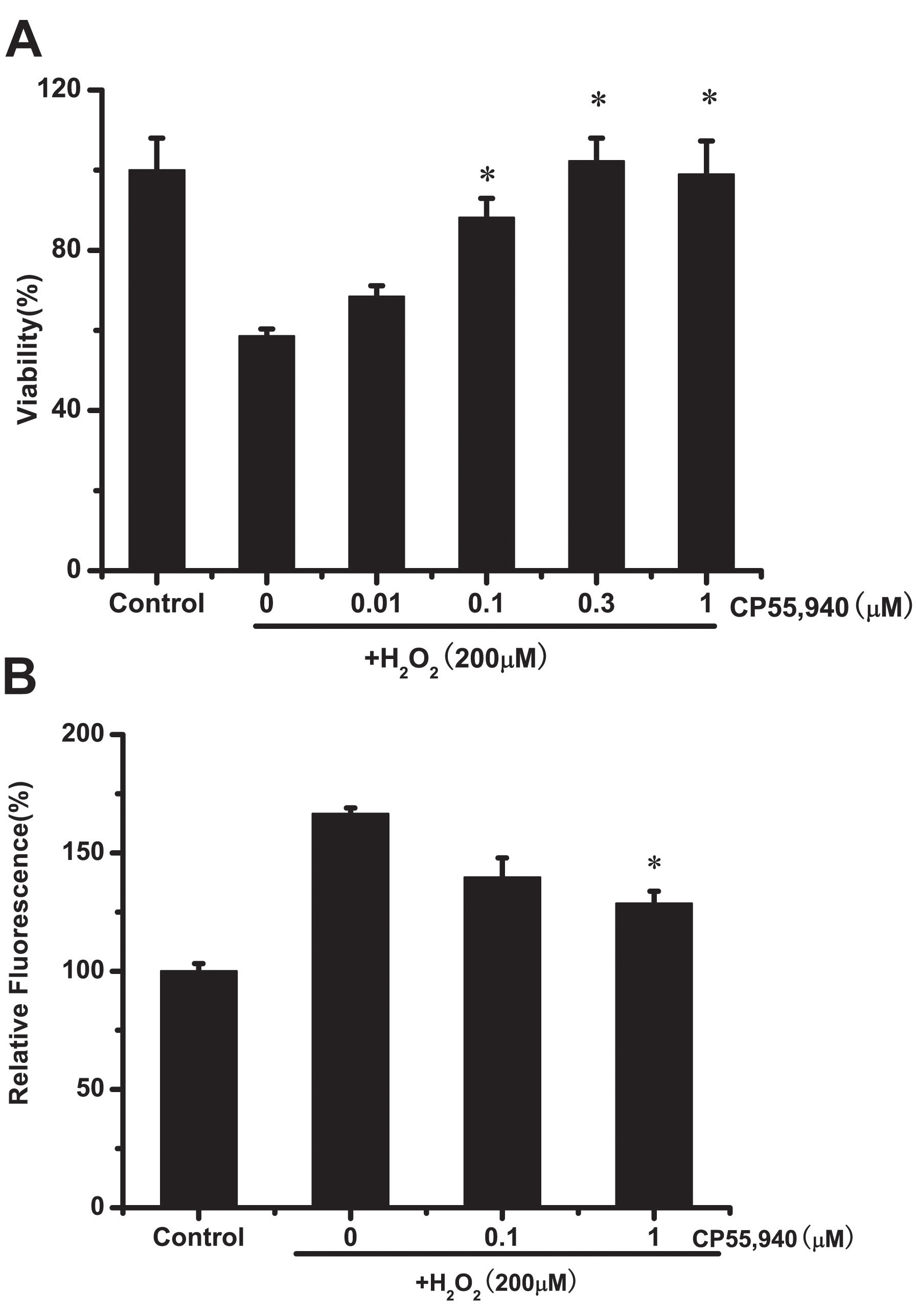

Figure 3. CP55,940 attenuates H2O2-induced cytotoxicity and ROS generation. A: Protective effects of CP55,940 on H2O2-induced decrease in cell viability measured by the MTT assay. Cells were pretreated with 0–1 μM CP55,940 for 15 min before exposure to 200 μM H2O2 for 24 h, and cell viability was measured by MTT assay. Asterisk (*) the correlation significant at the p<0.05 level and suggest a significant increase in cell viability as compared to H2O2-treated group. B: Protective effects of CP55,940 on H2O2-induced increase in intracellular ROS in ARPE-19 cells. Cells were pretreated with 0–1 μM CP55,940 for 15 min before exposure to 200 μM H2O2 for 24 h, and intracellular ROS was measured by the DCF-DA assay. Aterisk (*) represents the correlation significant at the p<0.05 level and suggest a significant decrease in intracellular ROS generation as compared to H2O2-treated group.
