Figure 1 of Yanovitch, Mol Vis 2009; 15:1028-1035.

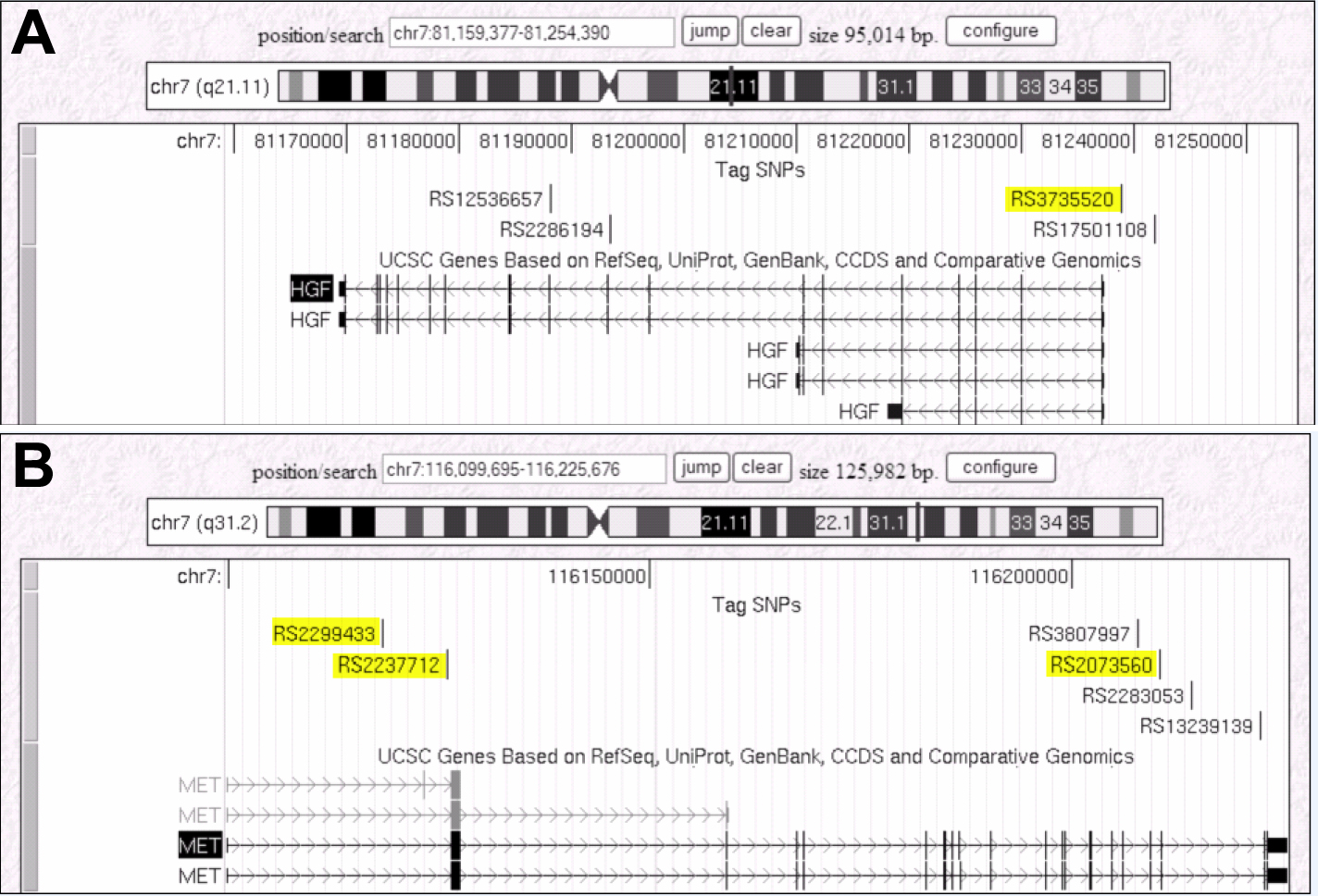

Figure 1. Schematic representations of the SNPs selected for the HGF (1A) and C-MET (1B) genes (source UCSC genome browser). A total of 4 SNPs were selected for HGF and 6 were selected for C-MET. The SNPs highlighted in yellow have previously been associated with high myopia as reported by Han et al. [16] for HGF and Khor et al. [Personal communication, Khor CC] for C-MET. All of the SNPs are intronic with the exception of rs3735520 which is located 1.5KB upstream from HGF and rs17501108 which is located 4.5KB upstream from HGF.
