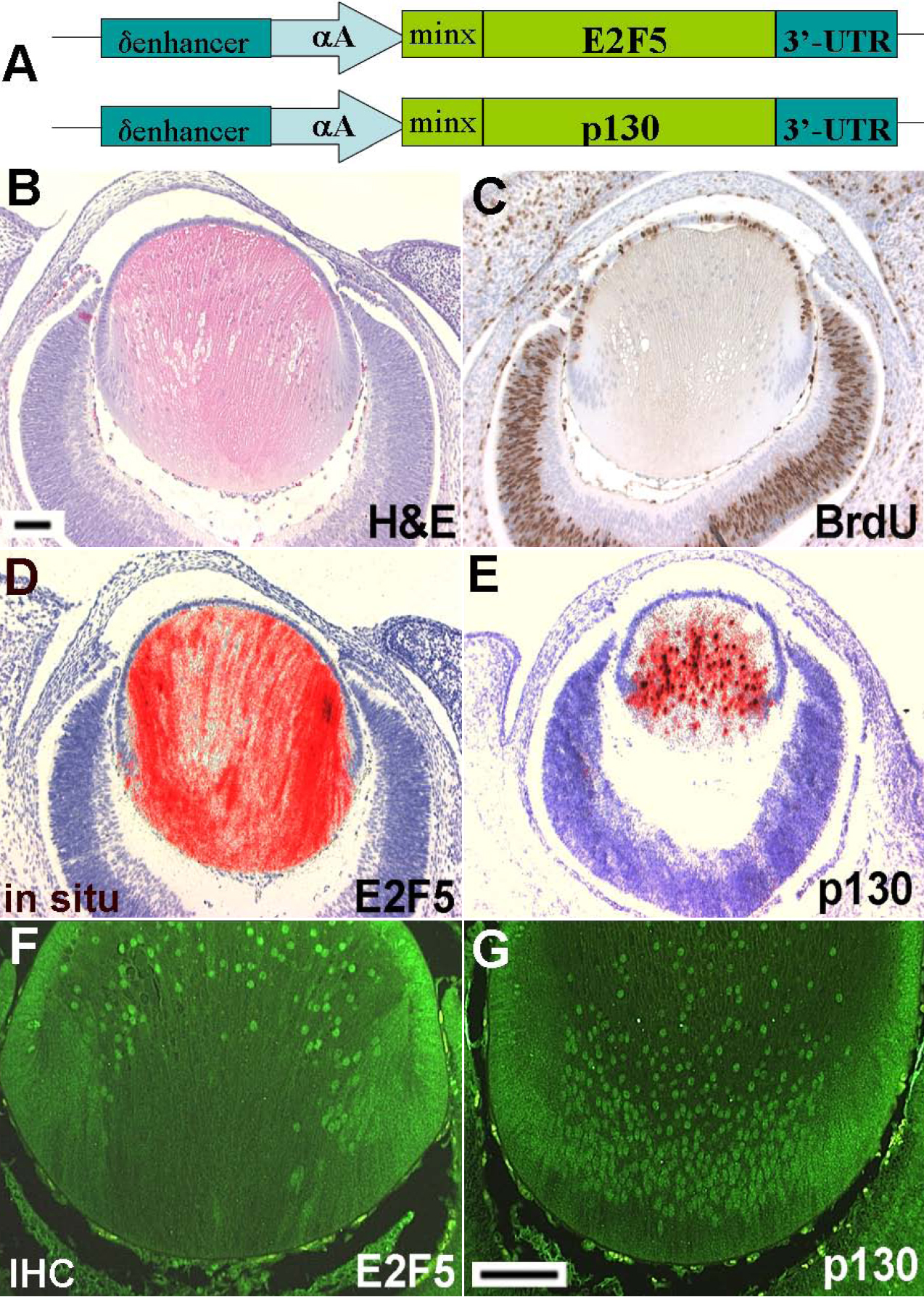

Figure 1. Generation and characterization of E2F5/p130 double transgenic mice.
A: Microinjected constructs. Human E2F5 and mouse p130 cDNAs were linked to the δenhancer αA-crystallin promoter in vector δenαA-minx
(DREAM) [
30].
B: At E15.5, the bigenic lens shows a normal lens phenotype.
C: No BrdU positive fiber cells were present in the center of the double transgenic lens.
D-E: In situ hybridization was used to examine expression of E2F5 and p130 transgenes with human E2F5 and mouse p130 riboprobes.
Hybridization signals were initially captured as dark-field images, pseudocolored red, and then superimposed on bright-field
images of the same tissue sections counterstained by hematoxylin. The E2F5 (
D) and p130 (
E) transgenes were expressed in lens fiber cells. The size of lens in panel E is smaller as this section is more peripheral.
F-G: Immunohistochemistry. Using antibodies against E2F5 (
F) and p130 (
G), a green nuclear staining was detected in the double transgenic lens fiber cells. Scale bars=500 μm.
