Figure 1 of Tripathi, Mol Vis 2008; 14:542-549.

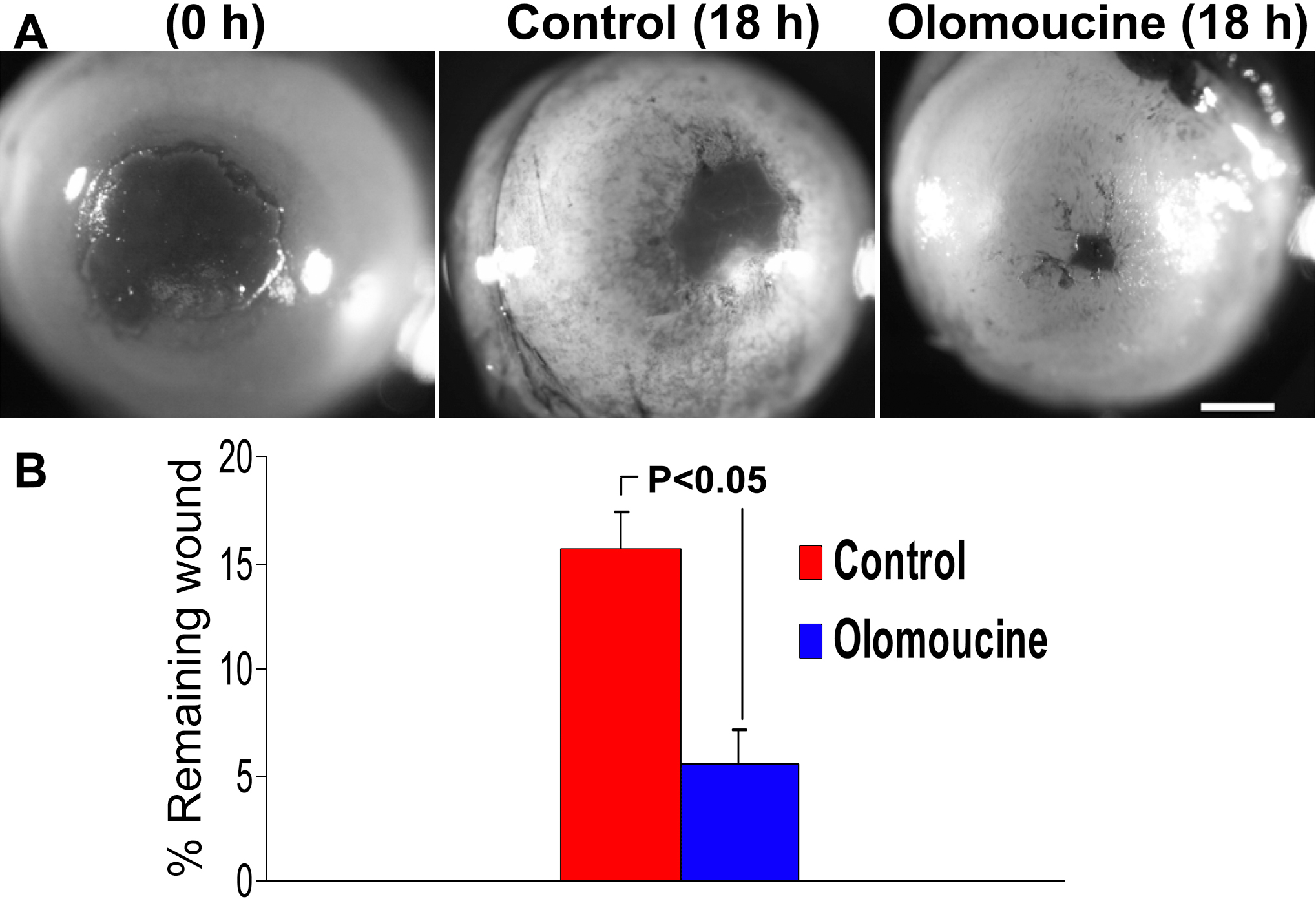

Figure 1. Olomoucine treatment promotes corneal re-epithelialization in normal mice. A: Eyes were stained with Richardson’s stain immediately after debridement wounding (0 h) or 18 h afterward. At 0 h and 6 h after wounding, control animals received a sterile vehicle (1.0% DMSO in PBS) and the treatment group received 15 μM olomoucine. Scale bar=100 μM. B: The graph shows the remaining wound area as a percentage of average initial wound area (mean ± SEM). The difference between olomoucine-treated and control mice was statistically significant (p<0.05; n=28–30).
